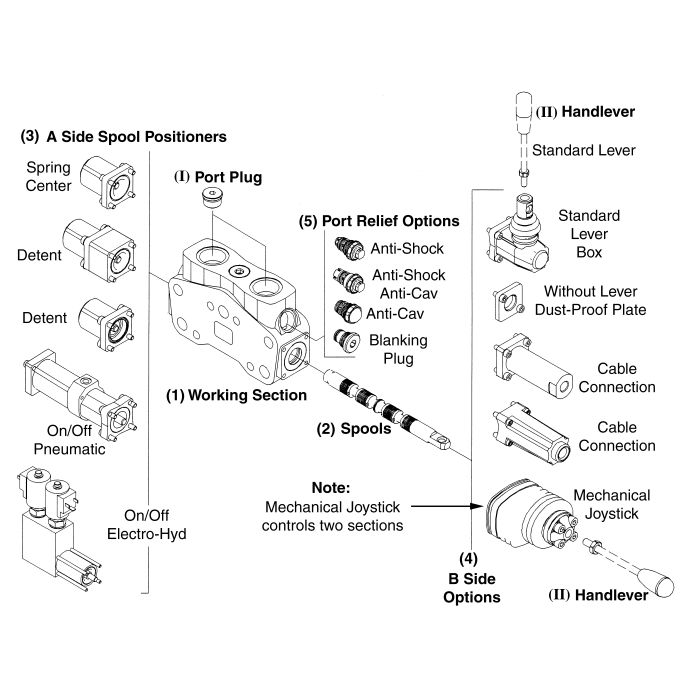

SD25 Series Walvoil SD25 Cylinder Spool TYPE 1IM

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (2)	Supplier Part Number 3CU2710420	Alternate Part Numbers Alternate Part Number C1HS90	Product Weight 1.73 lbs

Product Questions & Answers 2

Product Questions & Answers

What's the temperature range on this thing? Got equipment running in some pretty brutal conditions and need to know if it'll hold up.

Question by: Cody L on Aug 4, 2025, 4:43 PM

Ambient temps between -40°F and 140°F are within spec for this spool. On the fluid side, you're looking at -4°F to 176°F using the standard Buna-N seals. So unless you're dealing with something truly extreme on either end, it should handle most field conditions without issue.

Answer by: Customer Support on Aug 6, 2025, 7:09 AM

Can this valve handle a good bit of pressure? I'm running some heavy equipment.

Question by: Joyce J on Aug 11, 2025, 2:37 PM

It’s rated for up to 4600 PSI in parallel circuits, but only 3050 PSI in series circuits. Make sure your system is within those limits.

Answer by: Customer Support on Aug 12, 2025, 8:27 PM
