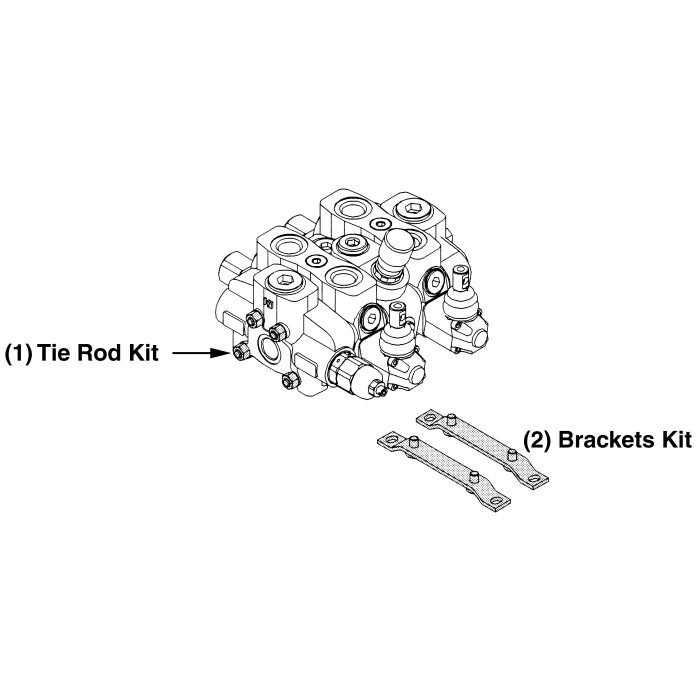

SD16 Series Walvoil SD16/4 Tie Rod Kit

Brand Walvoil Fluid Power Corp.	Brand Walvoil Fluid Power	Pack Size 1.00	UOM EA	Key (1)	Supplier Part Number 5TIR110316	Alternate Part Numbers Alternate Part Number C1HU49	Product Weight 2.01 lbs

Product Questions & Answers 2

Product Questions & Answers

Can this tie rod kit handle different hydraulic setups, like if I'm running a parallel or series circuit?

Question by: Lance R on Aug 3, 2025, 10:24 AM

This kit is designed to work with both parallel and tandem circuits at a max operating pressure of 4600 PSI, as well as series circuits at a max of 3050 PSI.

Answer by: Customer Support on Aug 4, 2025, 2:53 PM

runs up to 4600 PSI on parallel circuits, does that hold for series setups too or is it lower?

Question by: Ricky Y on Apr 4, 2025, 2:03 PM

Series circuits carry a different limit on this valve. Parallel and tandem configurations are both rated to 4600 PSI, but series circuit operation is capped at 3050 PSI. Worth keeping in mind when you're laying out a system that might switch between circuit types depending on the application.

Answer by: Customer Support on Apr 6, 2025, 7:34 AM

Similar Products

Model Number	Key	Product Description
5STA125220	(2)	WALVOIL SD16 BRACKET KIT.
5TIR110218	(1)	WALVOIL SD16/2 TIE ROD KIT.
5TIR110266	(1)	WALVOIL TIE ROD KIT FOR 3-SECTION SD16 V.
5TIR110316	(1)	WALVOIL SD16/4 TIE ROD KIT.
5TIR110554	(1)	WALVOIL TIE ROD KIT. FOR WALVOIL SD16-SE.
