SD16 Series Walvoil SD16/2 Tie Rod Kit

These tie rod kits are specifically for the Walvoil SD16 series valves.

Ambient temps from -40°F up to 140°F are within spec, and the fluid itself can run anywhere from -4°F to 176°F using the standard Buna-N seals. That covers most working environments pretty well, including cold starts in winter and heat-heavy summer operation.

Absolutely, this tie rod kit is designed to handle fluid temperatures from -4°F to 176°F with the standard Buna-N seals, and ambient temperatures from -40°F to 140°F.

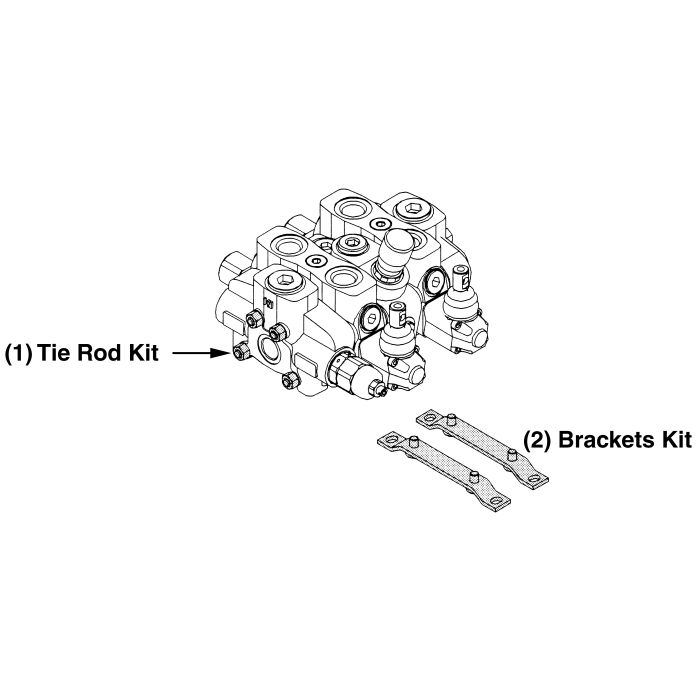

For SD16 sectional valves, this kit is the tie rod and mounting bracket set intended for an SD16/2 assembly.

Running parallel or tandem, the SD16/2 tops out at 4600 PSI. Drop it into a series circuit and that ceiling comes down to 3050 PSI. Worth keeping in mind when you're speccing this out for a heavier-duty application. Flow rating comes in at 37 GPM, and back pressure on the outlet port T is limited to 360 PSI, so factor that in on the return side too.
