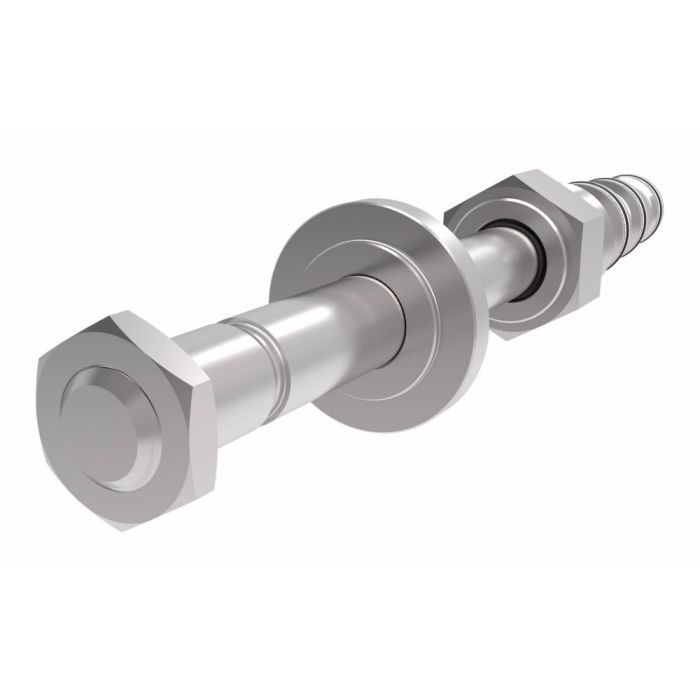

SBV11-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Coil Not Included	Coil Special Features None	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 227 L/min (60 USgpm)\|Reliable, economical and compact\|Hardened and ground steel	Housing None	Installation Type Screw-in Cartridge	Leakage 5 drops/min, max @ 350 bar	Manual Override Option No	Number of Housing Ports 2	Number of Valve Ports 2	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Bi-Directional 2-Way 2-Position Normally Open	Supplier Part Number 02-177579	Switch Connector No	Valve Material Cartridge only	Product Weight 0.39 lbs	Alternate Part Numbers Alternate Part Number C1HY31, Alternate Part Number DSSBV11 10 0 0 00, Alternate Part Number SBV11100000

Product Questions & Answers 3

Product Questions & Answers

Will this here valve work okay on a log splitter? I'm pushing about 2800 PSI through it.

Question by: Travis W on Dec 21, 2025, 9:49 PM

This valve is rated up to 5000 PSI, but keep in mind that if you're going over 3000 PSI, you'll need to use a steel housing or manifold with it.

Answer by: Customer Support on Dec 23, 2025, 6:06 AM

got a question on how this one acts, is it open unless you power it up or the other way around?

Question by: Kent B on Feb 3, 2026, 8:08 AM

De-energized, it is normally open and will pass flow either direction through the cartridge. When you energize the solenoid, it shifts to block flow in both directions.

Answer by: Customer Support on Feb 5, 2026, 6:06 AM

runs at 5000 psi but my setup's got a cast housing right now, that gonna be a problem?

Question by: Shawn K on May 14, 2025, 4:04 PM

At pressures above 3000 PSI, a steel housing or manifold is required. Cast housings are not rated for the upper end of this valve's pressure range. If you're running anywhere near that 5000 PSI ceiling, you'll need to swap to a steel housing before putting this cartridge in service. The valve itself is rated for 5000 PSI, but what it's threaded into has to be up to that same standard.

Answer by: Customer Support on May 15, 2025, 5:47 PM

Similar Products

Part Number	Model Number	Housing	Coil	Seal Material	Price	Buy Now
02-177579	SBV11-10-0-0-00	None	Not Included	Buna-N
