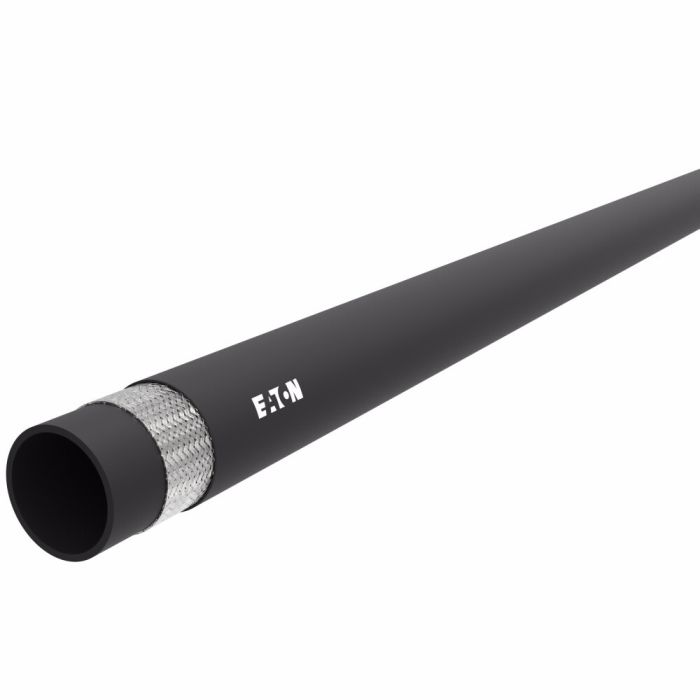

SAE J1402 A, DOT AII, FMVSS106 Air Brake Hose, 0.50 Inch ID, Up To 225.00 PSI

Color
Black
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.50
Hose O.D.
0.88
Maximum Operating Pressure
225
Minimum Bend Radius
2
Minimum Bend Radius
2
Reel Qty (ft)
250
Supplier Part Number
EC03808-250R
Alternate Part Numbers
Alternate Part Number C1MK49, Alternate Part Number MI-08753157, Alternate Part Number MINO-00015X78654
Product Weight
0.14 lbs

Product Questions & Answers

Running tractor-trailer rigs and need to swap out the air brake lines. This hose rated for that kind of application, and what pressure does it hold up to?
Question by: Kirk M on Nov 12, 2025, 11:41 AM
Tractor to trailer lines are exactly what this hose is built for, along with axle chamber lines and tractor service lines. It handles up to 225 PSI operating pressure, which covers standard air brake system demands. The 0.50 inch inner diameter and EPDM construction with polyester braid reinforcement give it solid durability for that kind of regular workload. It also carries SAE J1402 A, DOT AII, and FMVSS106 ratings, so it meets the certifications required for air brake use on commercial vehicles.
Answer by: Customer Support on Nov 13, 2025, 2:32 PM

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Buy Now
EC03806-250R 0.38 0.75 225 1.75 250
EC03808-250R 0.5 0.88 225 2 250
