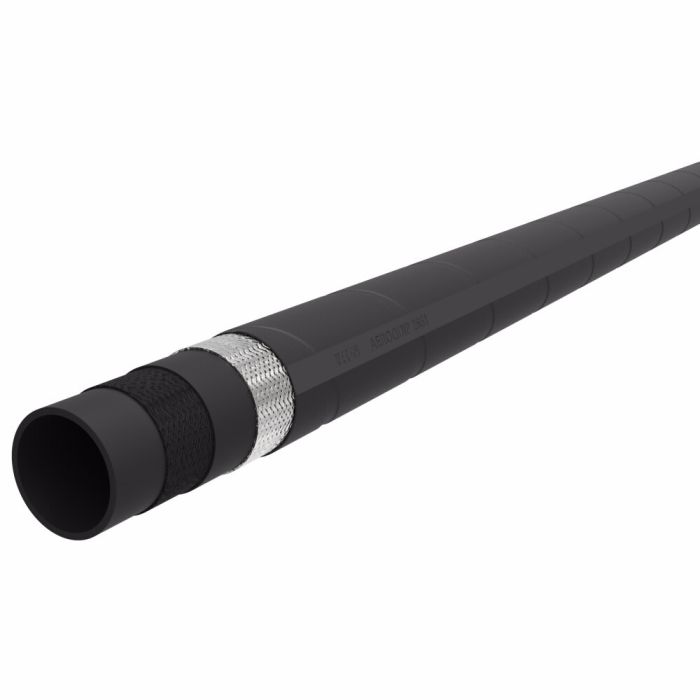

Single Wire Braid SAE 100R5 Performance Hose, 0.41 Inch ID, Up to 2000.00 PSI

Abrasion Resistance 29	Application Hydraulics, gasoline, fuel and lubricating oils, air and water.	Color Black	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 0.41	Hose O.D. 0.75	Impulse Cycle Life 500000 cycle	Lay Line Style Embossed	Maximum Operating Pressure 2000	Minimum Bend Radius 4.62	Minimum Working Temperature -40	Reel Qty (ft) 470-620	Reinforcement Material Polyester and Wire	Supplier Part Number 2651-8RL	Tube Material Synthetic Rubber	Vacuum Service 28	Alternate Part Numbers Alternate Part Number 2651-8RL, Alternate Part Number C1BJ16	Product Weight 0.75 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a tight spot to route this line, what’s the smallest bend it’ll take without kinking up?

Question by: Travis D on Dec 18, 2025, 8:26 PM

Minimum bend radius on this hose is 4.62 inches, so you want your routing to stay at or above that radius to keep it from getting stressed.

Answer by: Customer Support on Dec 20, 2025, 7:37 PM

got a tight spot to route this line. how tight can i bend that -8 hose without kinkin it

Question by: Lance R on Apr 12, 2025, 7:05 PM

For this -8 (0.41 inch ID) SAE 100R5 hose, the minimum bend radius is 4.62 inches. Staying at or above that radius helps keep it from kinking and protects the reinforcement.

Answer by: Customer Support on Apr 14, 2025, 3:32 PM

Similar Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2651-8	0.41	0.75	2000	4.62	28	470-620
2651-12	0.62	1.08	1500	6.5	28	230-300
2651-16	0.88	1.23	800	7.38	20	180-240
2651-20	1.12	1.5	625	9	20	Rolls Only
2651-4	0.19	0.52	3000	3	28	540-720
2651-6	0.31	0.68	2250	4	28	320-420
