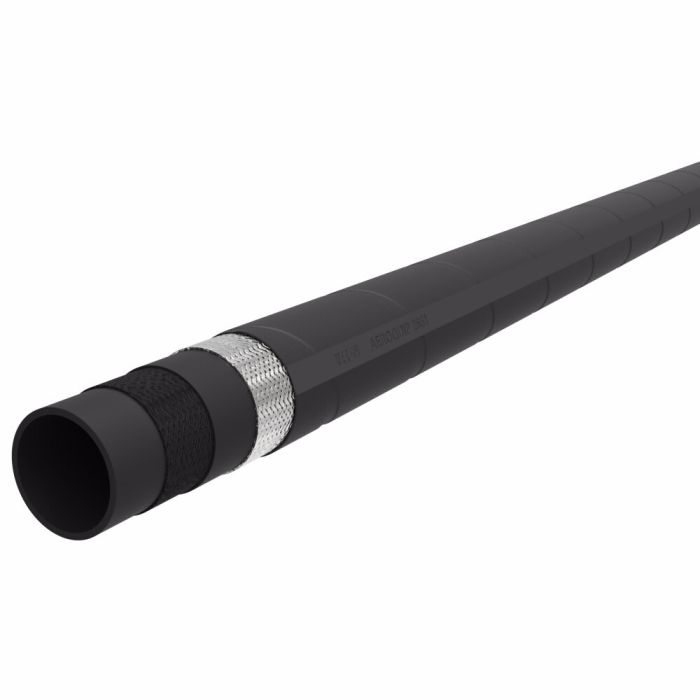

Single Wire Braid SAE 100R5 Performance Hose, 0.31 Inch ID, Up to 2250.00 PSI

Abrasion Resistance 29	Application Hydraulics, gasoline, fuel and lubricating oils, air and water.	Color Black	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 0.31	Hose O.D. 0.68	Impulse Cycle Life 1000000 cycle	Lay Line Style Embossed	Maximum Operating Pressure 2250	Minimum Bend Radius 4	Minimum Working Temperature -40	Reel Qty (ft) 320-420	Reinforcement Material Polyester and Wire	Supplier Part Number 2651-6RL	Tube Material Synthetic Rubber	Vacuum Service 28	Alternate Part Numbers Alternate Part Number 20001-BERTRAM, Alternate Part Number 2651-6RL, Alternate Part Number C1BJ15	Product Weight 0.74 lbs

Product Questions & Answers 1

Product Questions & Answers

will this handle 2200 psi continuous or is that just peak pressure

Question by: Rod H on Mar 2, 2025, 7:53 PM

SAE 100R5 hose rated up to 2250 PSI can handle continuous operation at pressures within that range, including your 2200 PSI requirement. Single wire braid construction provides consistent pressure handling for hydraulic systems running at or below the maximum rated pressure.

Answer by: Customer Support on Mar 4, 2025, 4:15 PM

Similar Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2651-8	0.41	0.75	2000	4.62	28	470-620
2651-12	0.62	1.08	1500	6.5	28	230-300
2651-16	0.88	1.23	800	7.38	20	180-240
2651-20	1.12	1.5	625	9	20	Rolls Only
2651-4	0.19	0.52	3000	3	28	540-720
2651-6	0.31	0.68	2250	4	28	320-420
