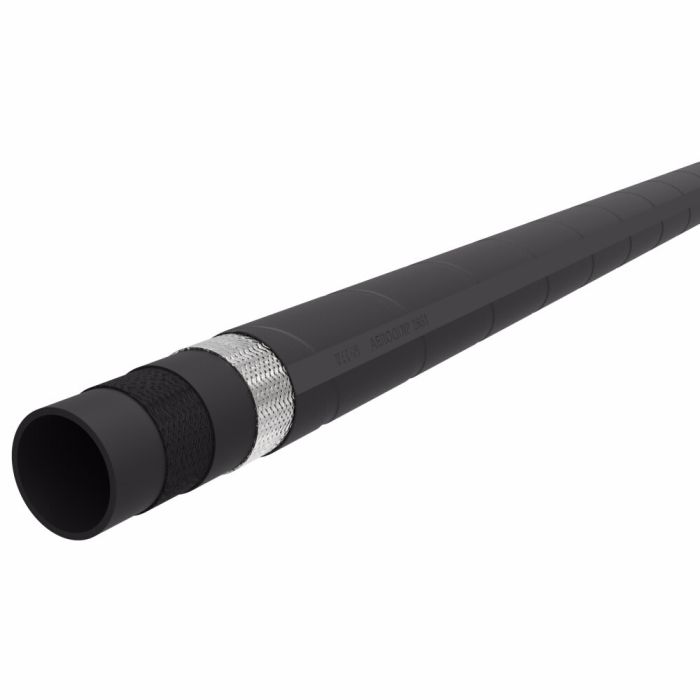

Single Wire Braid SAE 100R5 Performance Hose, 0.19 Inch ID, Up to 3000.00 PSI

Abrasion Resistance 29	Application Hydraulics, gasoline, fuel and lubricating oils, air and water.	Color Black	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -4	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 0.19	Hose O.D. 0.52	Impulse Cycle Life 500000 cycle	Lay Line Style Embossed	Maximum Operating Pressure 3000	Minimum Bend Radius 3	Minimum Working Temperature -40	Reel Qty (ft) 540-720	Reinforcement Material Polyester and Wire	Supplier Part Number 2651-4RL	Tube Material Synthetic Rubber	Vacuum Service 28	Alternate Part Numbers Alternate Part Number C1BJ12	Product Weight 0.62 lbs

Product Questions & Answers 3

Product Questions & Answers

got a machine running hydraulic fluid and fuel lines both, this hose handle either one or does it need to be a different line for each?

Question by: Roy R on Nov 5, 2025, 1:59 PM

Same hose works for both. The 2651-4 is rated for hydraulic fluid, gasoline, fuel, and lubricating oils, so running it across both applications on the same machine is well within what it's built for. The inner tube is synthetic rubber and the construction holds up to those fluids without needing separate lines for each.

Answer by: Customer Support on Nov 6, 2025, 7:14 PM

Will this hose handle regular gasoline without breaking down?

Question by: Ronnie M on Sep 26, 2025, 10:38 AM

This hose is designed for gasoline, fuel, and lubricating oil applications, so it should work for your needs.

Answer by: Customer Support on Sep 28, 2025, 8:21 AM

trying to replace a -4 hose on an old setup. is this one actually 0.19 inch inside and good for 3000 psi?

Question by: Ross W on Oct 23, 2025, 7:00 PM

It’s a -4 dash hose with a 0.19 inch inner diameter. On pressure, it’s rated up to 3000 PSI max operating pressure.

Answer by: Customer Support on Oct 25, 2025, 7:16 AM

Similar Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2651-8	0.41	0.75	2000	4.62	28	470-620
2651-12	0.62	1.08	1500	6.5	28	230-300
2651-16	0.88	1.23	800	7.38	20	180-240
2651-20	1.12	1.5	625	9	20	Rolls Only
2651-4	0.19	0.52	3000	3	28	540-720
2651-6	0.31	0.68	2250	4	28	320-420
