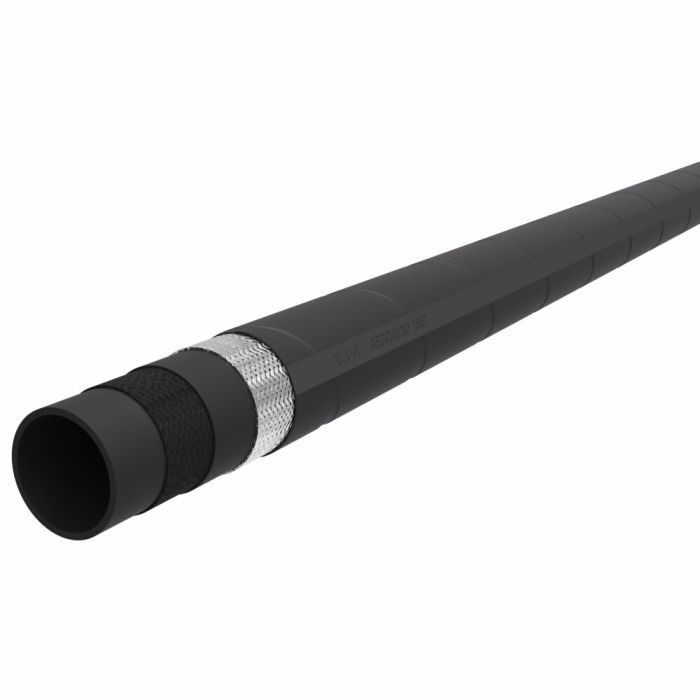

Single Wire Braid SAE 100R5 Performance Hose, 0.62 Inch ID, Up to 1500.00 PSI

Abrasion Resistance 29	Application Hydraulics, gasoline, fuel and lubricating oils, air and water.	Color Black	Conductivity 30	Construction 2-ply braid	Cover Material Chloroprene Rubber	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Hose I.D. 0.62	Hose O.D. 1.08	Impulse Cycle Life 500000 cycle	Lay Line Style Embossed	Maximum Operating Pressure 1500	Minimum Bend Radius 6.50	Minimum Working Temperature -40	Reel Qty (ft) 230-300	Reinforcement Material Polyester and Wire	Supplier Part Number 2651-12RL	Tube Material Synthetic Rubber	Vacuum Service 28	Alternate Part Numbers Alternate Part Number C1BH98	Product Weight 1.20 lbs

Product Questions & Answers 1

Product Questions & Answers

hose rated for fuel lines or just straight hydraulic use?

Question by: Lee P on May 6, 2025, 10:41 AM

Fuel service is absolutely within scope for this hose. It's built to SAE 100R5 standards and listed for hydraulics, gasoline, fuel, lubricating oils, air, and water. The synthetic rubber tube handles petroleum-based fluids well, which is why it shows up in fuel transfer and lube oil routing just as often as in hydraulic circuits.

Answer by: Customer Support on May 8, 2025, 10:25 AM

Similar Products

Model Number	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
2651-8	0.41	0.75	2000	4.62	28	470-620
2651-12	0.62	1.08	1500	6.5	28	230-300
2651-16	0.88	1.23	800	7.38	20	180-240
2651-20	1.12	1.5	625	9	20	Rolls Only
2651-4	0.19	0.52	3000	3	28	540-720
2651-6	0.31	0.68	2250	4	28	320-420
