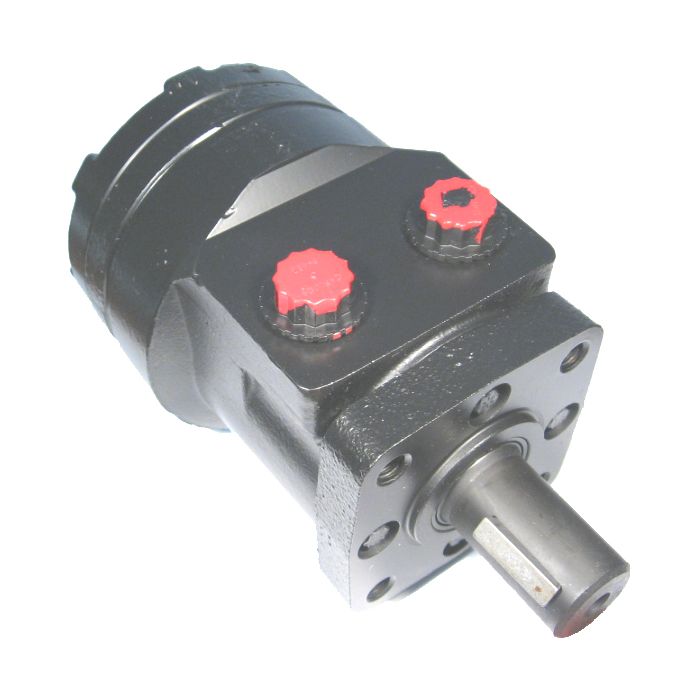

S Series Geroler Motors, Up To 5190 lb-in Intermittent Torque, 963 Intermittent RPM
Fluid Viscosity |
70 SUS at operating temperature. |
Maximum Case Pressure |
1500 PSI. |
Maximum Operating Temperature |
180° F. |
Recommended Break-In |
To assure best motor life, run motor for approximately one hour at 30% of rated pressure before application to full load. Be sure motor is filled with fluid prior to any load applications. |
Recommended Filtration |
Per ISO Cleanliness Code, level 18/13. |
Recommended Fluids |
Premium quality, anti-wear type hydraulic fluid. |
Products
| Model Number | Displacement | Mount | Shaft | Ports | Features | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| 103-1040 | 22.7 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1002 | 4.6 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1003 | 5.7 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1004 | 10.1 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1005 | 11.4 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1006 | 13.7 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1007 | 18.2 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1008 | 22.7 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1011 | 5.7 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1013 | 11.4 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1014 | 13.7 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1015 | 18.2 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1016 | 22.7 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1024 | 22.7 | 4 Bolt | 1 in. Straight Keyed | Manifold | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1026 | 4.6 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1027 | 5.7 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1028 | 10.1 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1029 | 11.4 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1030 | 13.7 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1031 | 18.2 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1032 | 22.7 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1034 | 4.6 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1035 | 5.7 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1036 | 10.1 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1037 | 11.4 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1038 | 13.7 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1039 | 17.9 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1537 | 3.6 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1538 | 7.3 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1539 | 8.8 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1540 | 3.6 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1542 | 8.8 | 2 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1570 | 3.6 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1571 | 7.3 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1572 | 8.8 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1573 | 3.6 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1574 | 7.3 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-1575 | 8.8 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-2006 | 13.7 | 4 Bolt | 1 in. Straight Keyed | 1/2 NPT | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-2016 | 22.7 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-2038 | 13.7 | 2 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-3575 | 5.7 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-3577 | 11.4 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
|
| 103-3581 | 3.6 | 4 Bolt | 1 in. Straight Keyed | 7/8-14 St.Thd. O-Ring | Compact yet powerful|Extended bearing life|Increased shaft seal |
|
