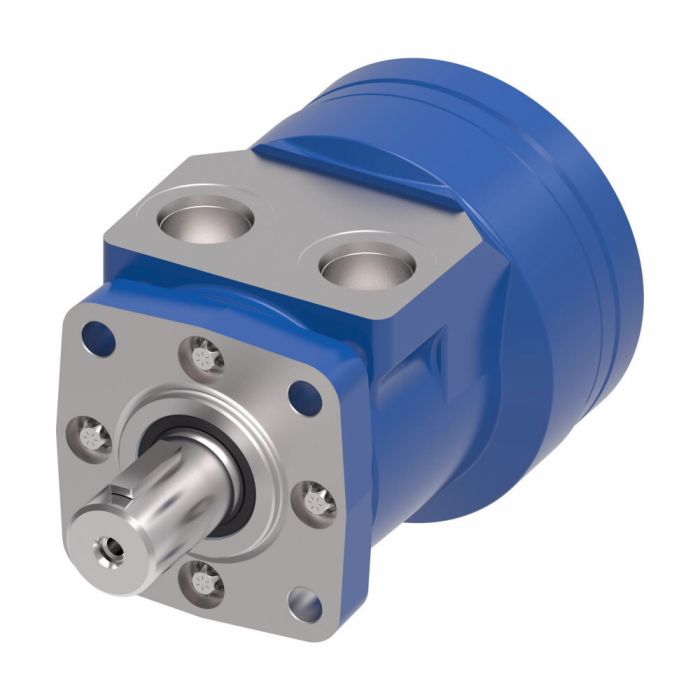

S Series Geroler Motor, 3.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Application Agricultural augers, Food processing, Machine tools, Harvesters, Seeders	Design Code 12	Displacement 3.60	Displacement 3.6	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Compact yet powerful\|Extended bearing life\|Increased shaft seal	Identification None	Mount 4 Bolt	Mount 4 Bolt	Port Type .875-14 UNF-2B SAE O-Ring Ports	Ports 7/8-14 St.Thd. O-Ring	Ports 7/8-14 St.Thd. O-Ring	Shaft 1 in. Straight Keyed	Shaft 1 in. Straight Keyed	Supplier Part Number 103-1570-012	Torque Rating 115 newton metre	Torque Rating 115 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 103-1570-012, Alternate Part Number C1LW60	Product Weight 12.50 lbs

Product Questions & Answers 1

Product Questions & Answers

been running a char-lynn on my harvester for years and the old one finally gave out -- does this 3.60 displacement model need any kind of break-in before i throw it under full load?

Question by: Dwayne W on Aug 25, 2025, 9:55 AM

Yeah, Eaton Char-Lynn actually calls for a break-in on these. Run it for roughly an hour at about 30% of rated pressure before you put it under full load. Make sure the motor is filled with fluid before you apply any load at all. Skipping that step is one of the faster ways to shorten the life of a new motor, so it's worth the extra time upfront.

Answer by: Customer Support on Aug 27, 2025, 8:06 AM

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
103-1040	22.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1002	4.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1003	5.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1004	10.1	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1005	11.4	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1006	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1007	18.2	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1008	22.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1011	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1013	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1014	13.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1015	18.2	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1016	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1024	22.7	4 Bolt	1 in. Straight Keyed	Manifold	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1026	4.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1027	5.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1028	10.1	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1029	11.4	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1030	13.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1031	18.2	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1032	22.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1034	4.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1035	5.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1036	10.1	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1037	11.4	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1038	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1039	17.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1537	3.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1538	7.3	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1539	8.8	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1540	3.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1542	8.8	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1570	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1571	7.3	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1572	8.8	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1573	3.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1574	7.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1575	8.8	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2006	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2016	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2038	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3575	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3577	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3581	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
