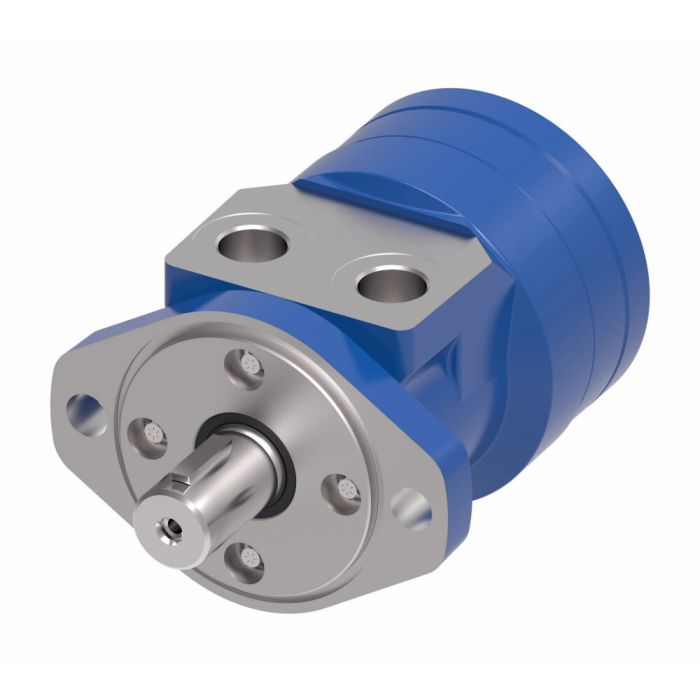

S Series Geroler Motor, 8.80 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Application Agricultural augers, Food processing, Machine tools, Harvesters, Seeders	Design Code 12	Displacement 8.80	Displacement 8.8	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Compact yet powerful\|Extended bearing life\|Increased shaft seal	Identification None	Mount 2 Bolt	Mount 2 Bolt	Port Type .500-14 NPTF Dryseal Pipe Thread Ports	Ports 1/2 NPT	Ports 1/2 NPT	Shaft 1 in. Straight Keyed	Shaft 1 in. Straight Keyed	Supplier Part Number 103-1542-012	Torque Rating 265 newton metre	Torque Rating 265 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 103-1542-012, Alternate Part Number C1FE59	Product Weight 16.40 lbs

Product Questions & Answers 3

Product Questions & Answers

been running a seeder setup for a couple seasons now and the old motor finally gave out, trying to figure out if this one'll bolt right up. it's got the 2 bolt flange and a 1 inch keyed shaft, that right?

Question by: Larry E on May 16, 2025, 7:23 AM

2 bolt mounting flange and a 1 in. straight keyed shaft are both correct on this unit. Ports are 1/2 NPT, so as long as your hydraulic connections matches up there too, you're in good shape for a direct swap on most seeder applications. The 8.80 cu in/rev displacement is worth confirming against what your original motor was rated at before you button everything up.

Answer by: Customer Support on May 17, 2025, 5:16 PM

What kind of applications does this motor work well with? I'm thinkin' about using it for a grain auger.

Question by: Larry C on Jan 3, 2026, 7:02 PM

These S Series Geroler motors are often used in agricultural augers, plus food processing equipment, machine tools, harvesters and seeders.

Answer by: Customer Support on Jan 4, 2026, 7:29 PM

got a motor mount with 2 bolts already. is this one set up for that style flange?

Question by: Dwayne H on May 26, 2025, 7:00 PM

Mounting is the 2 bolt flange style on this S Series Geroler motor, so it matches a 2 bolt mount pattern. The shaft is a 1 inch straight keyed shaft, and the ports are 1/2 inch NPTF dryseal pipe thread.

Answer by: Customer Support on May 28, 2025, 5:00 PM

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
103-1040	22.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1002	4.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1003	5.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1004	10.1	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1005	11.4	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1006	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1007	18.2	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1008	22.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1011	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1013	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1014	13.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1015	18.2	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1016	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1024	22.7	4 Bolt	1 in. Straight Keyed	Manifold	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1026	4.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1027	5.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1028	10.1	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1029	11.4	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1030	13.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1031	18.2	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1032	22.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1034	4.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1035	5.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1036	10.1	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1037	11.4	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1038	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1039	17.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1537	3.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1538	7.3	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1539	8.8	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1540	3.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1542	8.8	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1570	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1571	7.3	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1572	8.8	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1573	3.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1574	7.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1575	8.8	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2006	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2016	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2038	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3575	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3577	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3581	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
