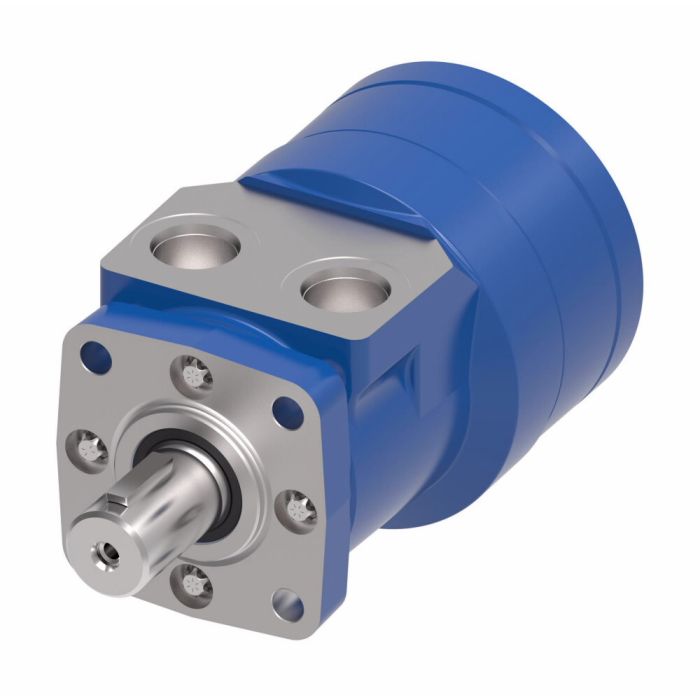

S Series Geroler Motor, 13.70 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Application Agricultural augers, Food processing, Machine tools, Harvesters, Seeders	Design Code 12	Displacement 13.70	Displacement 13.7	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Compact yet powerful\|Extended bearing life\|Increased shaft seal	Identification None	Mount 4 Bolt	Mount 4 Bolt	Port Type .875-14 UNF-2B SAE O-Ring Ports	Ports 7/8-14 St.Thd. O-Ring	Ports 7/8-14 St.Thd. O-Ring	Shaft 1 in. Straight Keyed	Shaft 1 in. Straight Keyed	Supplier Part Number 103-1014-012	Torque Rating 372 newton metre	Torque Rating 372 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 103-1014-012, Alternate Part Number C1AG76	Product Weight 16.00 lbs

Product Questions & Answers 3

Product Questions & Answers

Is this motor gonna be alright for running a grain auger on my farm?

Question by: Randy M on Apr 7, 2025, 1:40 PM

This S Series motor works well in agricultural applications such as augers. Just make sure your specific auger setup is within the motor's torque rating of 372 newton metres.

Answer by: Customer Support on Apr 9, 2025, 9:25 AM

been running a harvester with a busted motor and tryna figure out if this one'll hold up to the work -- what kind of torque output are we talkin on this thing?

Question by: Judy M on Mar 10, 2026, 8:04 AM

Rated at 372 newton metres, this motor puts out solid torque for that kind of agricultural work. Harvesters are actually one of the listed applications for it, so you're in the right ballpark. Just make sure you do a proper break-in before throwing it into full load duty -- about an hour at 30% of rated pressure does it, and the motor needs to be filled with fluid before any load goes on it.

Answer by: Customer Support on Mar 12, 2026, 6:30 AM

got a motor mount with a 4 bolt flange already. is this one the 4 bolt style and what ports does it take

Question by: Ralph W on Oct 25, 2025, 7:15 PM

For fit-up, it uses a 4 bolt mounting flange and it has 7/8-14 UNF-2B SAE O-ring ports, listed as 7/8-14 straight thread O-ring.

Answer by: Customer Support on Oct 27, 2025, 6:57 AM

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
103-1040	22.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1002	4.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1003	5.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1004	10.1	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1005	11.4	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1006	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1007	18.2	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1008	22.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1011	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1013	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1014	13.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1015	18.2	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1016	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1024	22.7	4 Bolt	1 in. Straight Keyed	Manifold	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1026	4.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1027	5.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1028	10.1	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1029	11.4	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1030	13.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1031	18.2	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1032	22.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1034	4.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1035	5.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1036	10.1	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1037	11.4	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1038	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1039	17.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1537	3.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1538	7.3	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1539	8.8	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1540	3.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1542	8.8	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1570	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1571	7.3	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1572	8.8	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1573	3.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1574	7.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-1575	8.8	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2006	13.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2016	22.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-2038	13.7	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3575	5.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3577	11.4	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
103-3581	3.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
