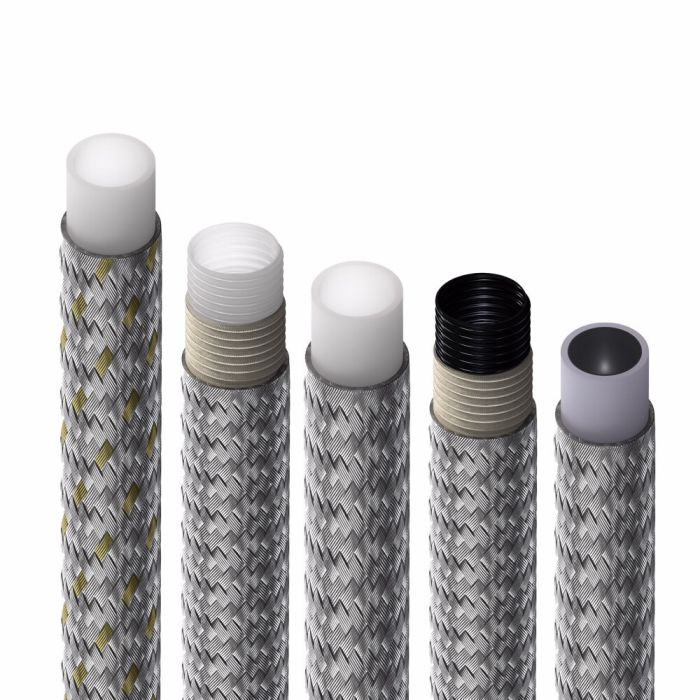

Smooth Bore Hose

Abrasion Resistance 28	Application Ideal for steam, compressor discharge and virtually all chemical applications. Not recommended for steam-cold water cycling.	Certifications SAE 100R14A	Color Stainless Steel	Conductivity 13552	Construction Extruded with braided cover	Cover Material Stainless Steel	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Withstands vibration and impulsing\|Impervious to degradation\|Wide temperature range	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 3.50	Minimum Bend Radius 3.5	Minimum Working Temperature -65	Net Pack Quantity Units FT	NMFC 70	Product Width 0.46	Qualified Hose Fittings Everswage	Reinforcement Material None	Sub Brand Everflex	Supplier Part Number S-6	Tube Material Teflon	Product Weight 0.47 lbs

Product Questions & Answers 1

Product Questions & Answers

got a tight spot to run this line, how sharp can i bend that -6 hose without kinkin it

Question by: Janet B on Oct 4, 2025, 8:41 PM

For the -6 dash size, the minimum bend radius is 3.5 inches. Staying at or above that bend radius helps keep the hose from being forced into a kinked shape.

Answer by: Customer Support on Oct 6, 2025, 9:46 AM
