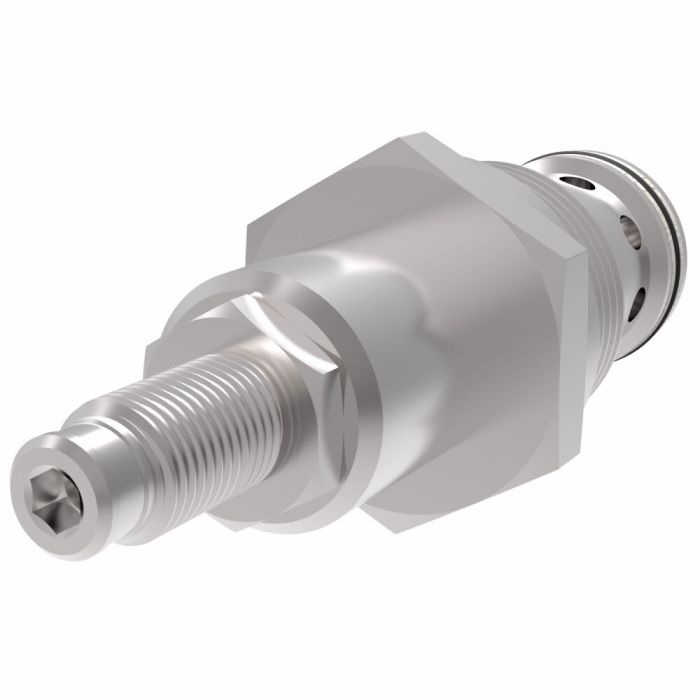

RV5-16 SeriesPilot-Operated Relief Cartridge Valve, 500-3000 PSI Screw Adjustment

Adjustable Range 500-3000	Adjustment No	Adjustment Style Screw	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Housing None	Installation Type Screw-in Cartridge	Leakage 164 cc/min	Minimum Working Pressure 20	Number of Housing Ports 2	Number of Valve Ports 2	Operation Pilot Operated	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Spool	Supplier Part Number 565854	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1EN56, Alternate Part Number DSRV516S030, Alternate Part Number RV516S030/	Product Weight 0.79 lbs

Product Questions & Answers 1

Product Questions & Answers

Running this on a refuse hauler that cycles pretty hard throughout the day, does this valve hold up to that kind of continuous use, or is it more of a light-duty setup?

Question by: Curt H on Oct 23, 2025, 4:10 PM

Continuous duty is exactly what this valve is built for. Smooth and quiet operation is part of the design, so it handles repeated pressure cycles without needing to be babied. Refuse haulers and harvesters are both listed as intended applications, so the demands of a hard daily cycle are well within what this valve is meant to take on.

Answer by: Customer Support on Oct 24, 2025, 7:16 PM

Similar Products

Part Number	Model Number	Adjustable Range	Adjustment Style	Housing	Seal Material	Price	Buy Now
02-164165	RV5-16-S-0-30/22	500-3000 (Set at 2200)	Screw	None	Buna-N
565854	RV5-16-S-0-30/	500-3000	Screw	None	Buna-N
