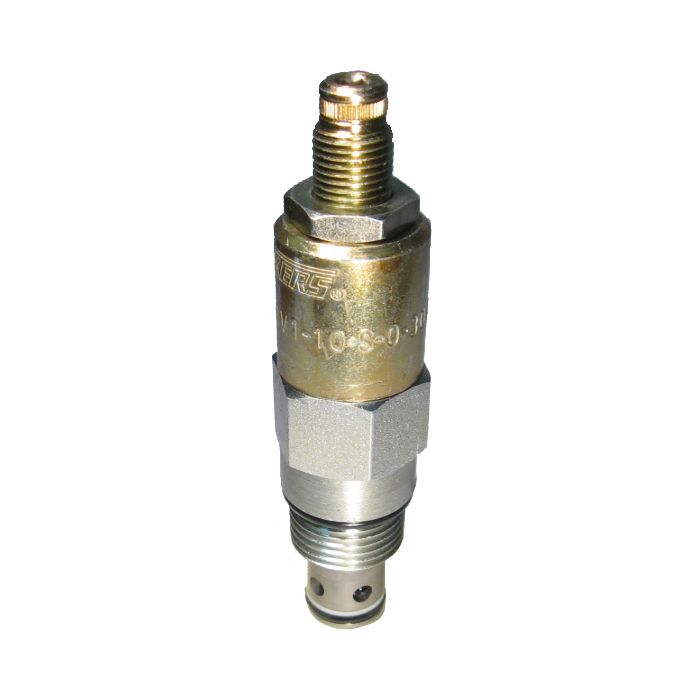

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valves, Up To 5000 PSI & 80 GPM
Cartridge |
Model RV5-10-*, sold separately. |
Features |
Cartridge style (Requires a machined cavity or housing for installation). Smooth and quiet. Continuous duty. |
Housing |
Cavity size C-10-2, sold separately, see |
Maximum Flow Rate |
30 GPM. |
Maximum Operating Pressure |
5000 PSI (CAUTION: Pressures over 3000 PSI require steel housing). |
Products
| Part Number | Model Number | Adjustable Range | Adjustment Style | Housing | Seal Material | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| 02-164222 | RV5-10-S-0-20/12 | 100-2000 (Set at 1200) | Screw | None | Buna-N |
|
|
| 02-164723 | RV5-10-S-0-35/14.5 | 250-3500 (Set at 1450) | Screw | None | Buna-N |
|
|
| 565572 | RV5-10-S-0-50/ | 500-5000 | Screw | None | Buna-N |
|
|
| 566246 | RV5-10-S-0-35/ | 250-3500 | Screw | None | Buna-N |
|
|
| 02-163944 | RV5-10-F-0-35/30 | 250-3500 (Set at 3000) | Factory set | None | Buna-N |
|
|
| 02-164733 | RV5-10-I-0-35/30 | 250-3500 (Set at 3000) | Internal | None | Buna-N |
|
|
| 02-180537 | RV5-10-S-0-35/14 | 250-3500 (Set at 1400) | Screw | None | Buna-N |
|
