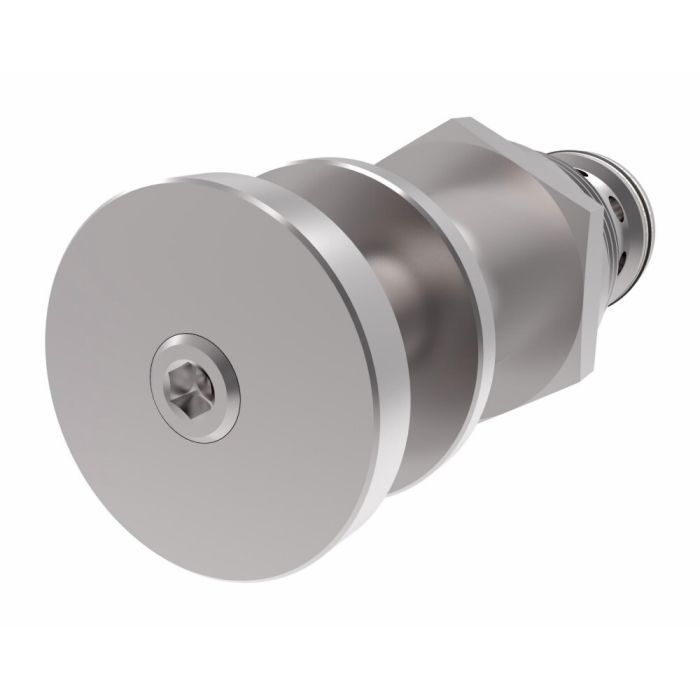

RV5-10 Series Pilot-Operated Spool Type Relief Cartridge Valve, 250-3500 (Set at 3000) PSI Factory set Adjustment

Adjustable Range 250-3500 (Set at 3000)	Adjustment No	Adjustment Style Factory set	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Housing None	Installation Type Screw-in Cartridge	Leakage 114 cc/min	Minimum Working Pressure 17	Number of Housing Ports 2	Number of Valve Ports 2	Operation Pilot Operated	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Spool	Supplier Part Number 02-163944	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1MW94	Product Weight 0.49 lbs

Product Questions & Answers 1

Product Questions & Answers

got a cavity already cut for C-10-2, will this RV5-10 cartridge screw right in or am i missing something

Question by: Carl H on Mar 15, 2026, 4:16 PM

It is a screw-in cartridge made for the C-10-2 cavity size. Keep in mind it is cartridge only, so you need the machined cavity or a separate housing for installation since no housing comes with it.

Answer by: Customer Support on Mar 16, 2026, 4:22 PM

Similar Products

Part Number	Model Number	Adjustable Range	Adjustment Style	Housing	Seal Material
02-164222	RV5-10-S-0-20/12	100-2000 (Set at 1200)	Screw	None	Buna-N
02-164723	RV5-10-S-0-35/14.5	250-3500 (Set at 1450)	Screw	None	Buna-N
565572	RV5-10-S-0-50/	500-5000	Screw	None	Buna-N
566246	RV5-10-S-0-35/	250-3500	Screw	None	Buna-N
02-163944	RV5-10-F-0-35/30	250-3500 (Set at 3000)	Factory set	None	Buna-N
02-164733	RV5-10-I-0-35/30	250-3500 (Set at 3000)	Internal	None	Buna-N
02-180537	RV5-10-S-0-35/14	250-3500 (Set at 1400)	Screw	None	Buna-N
