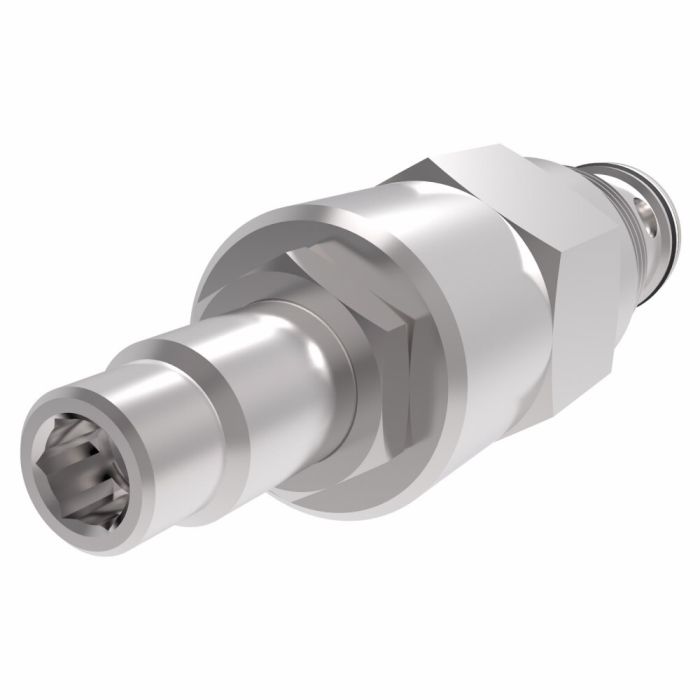

RV3-16 Series Direct-Acting Relief Cartridge Valve, 1200-3500 PSI Screw Adjustment

Adjustable Range 1200-3500	Adjustment No	Adjustment Style Screw	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Installation Type Screw-in Cartridge	Leakage 0.25 cc/min	Minimum Working Pressure 14	Number of Housing Ports 2	Number of Valve Ports 2	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Poppet	Supplier Part Number 565569	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1EN53, Alternate Part Number DSRV316S035, Alternate Part Number RV3-16-S-0-35, Alternate Part Number RV316S035/	Product Weight 1.63 lbs

Product Questions & Answers 4

Product Questions & Answers

got a system that needs a relief set somewhere between 1200 and 3500 psi. is that the adjustment range on this one?

Question by: Shawn C on Nov 1, 2025, 10:42 AM

For pressure setting, the screw adjustment range is 1200 to 3500 PSI on this RV3-16 series direct acting relief cartridge valve.

Answer by: Customer Support on Nov 3, 2025, 6:47 AM

running this on a refuse hauler setup and just want to make sure the pressure range works out. we need somewhere around 2800 psi steady. that gonna be fine with this valve?

Question by: Hugh W on Nov 17, 2025, 3:03 PM

At 2800 psi you are well within the adjustment range on this one. The screw adjustment covers 1200 to 3500 psi, so you have room on both ends of that range. One thing worth knowing is that anything above 3000 psi requires a steel housing. If your system is sitting at 2800 and you are using a cast or aluminum housing, you should be fine, but keep that steel housing requirement in mind if you ever push the setting higher during setup or testing.

Answer by: Customer Support on Nov 19, 2025, 11:11 AM

got a steel block machined for a C-16-2 cavity, is that the right fit for this RV3-16 cartridge?

Question by: Kurt H on Jul 15, 2025, 2:10 PM

You’re on the right track. The RV3-16 is a screw-in cartridge valve that installs in a C-16-2 cavity or matching housing, and it uses 2 ports.

Answer by: Customer Support on Jul 16, 2025, 5:50 PM

Will this cartridge valve fit in place of a Vickers RV3-16 I'm replacing?

Question by: Sherry E on Jul 29, 2025, 1:27 PM

This RV3-16 series cartridge valve is designed as a direct replacement for existing Vickers RV3-16 valves, ensuring a straightforward swap.

Answer by: Customer Support on Jul 31, 2025, 6:19 AM

Similar Products

Part Number	Model Number	Adjustable Range	Adjustment Style	Seal Material	Price	Buy Now
565569	RV3-16-S-0-35/	1200-3500	Screw	Buna-N
