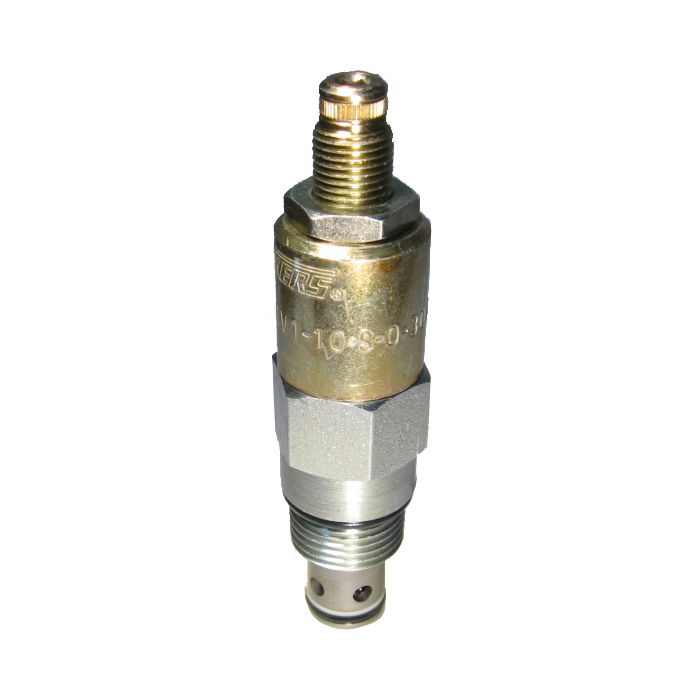

RV3-10 Series Direct-Acting Relief Cartridge Valves, Up To 3600 PSI & 20 GPM
Cartridge |
Model RV3-10-*, sold separately. |
Features |
Cartridge style (Requires a machined cavity or housing for installation). Contamination tolerant. Fast response. |
Housing |
Cavity size C-10-2, sold separately, see |
Maximum Flow Rate |
20 GPM. |
Maximum Operating Pressure |
3600 PSI (CAUTION: Pressures over 3000 PSI require steel housing). |
Products
| Part Number | Model Number | Adjustable Range | Adjustment Style | Housing | Seal Material | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| 565568 | RV3-10-S-0-36/ | 600-3600 | Screw | None | Buna-N |
|
|
| 566688 | RV3-10-S-0-3/ | 50-300 | Screw | None | Buna-N |
|
|
| 02-199334 | RV3A-10-S-0-18/11 | 300-1800 (Set at 1100) | Screw | None | Buna-N |
|
