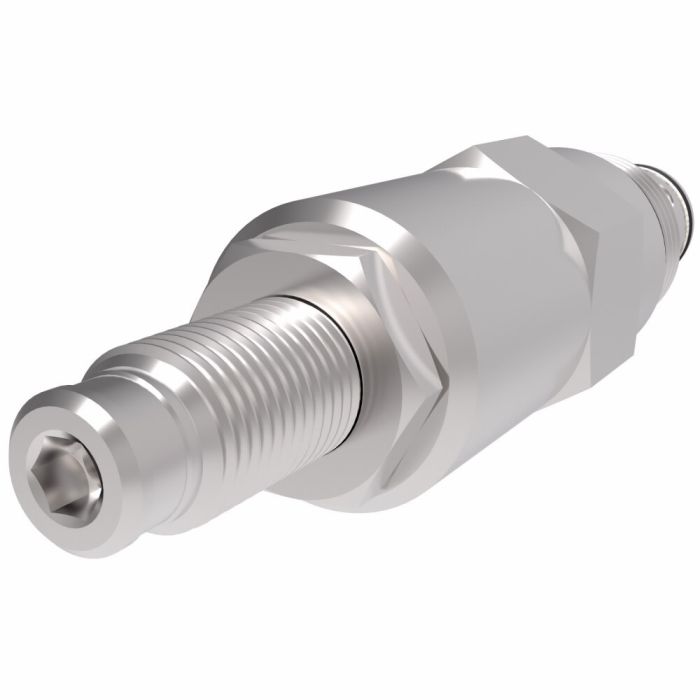

RV3-10 Series Direct-Acting Relief Cartridge Valve, 600-3600 PSI Screw Adjustment

Adjustable Range 600-3600	Adjustment No	Adjustment Style Screw	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Features 350 bar (5000 psi) & 300 L/min (80 USgpm)\|Reliable, economical and compact\|Maximum flexibility and minimum space	Housing None	Installation Type Screw-in Cartridge	Leakage 0.25 cc/min	Minimum Working Pressure 41	Number of Housing Ports 2	Number of Valve Ports 2	Operation Direct Acting	Port Type Cartrige Only	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Poppet	Supplier Part Number 565568	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1BT34, Alternate Part Number DSRV310S036/, Alternate Part Number RV310S036/	Product Weight 0.53 lbs

Product Questions & Answers 3

Product Questions & Answers

got a cavity already cut for C-10-2. will this RV3-10 cartridge screw right in or am i missing something

Question by: Daryl S on Jul 22, 2025, 10:19 AM

For a C-10-2 machined cavity, the RV3-10 series is the matching screw-in cartridge style. Keep in mind the cartridge and the housing are sold separately, and this part is the cartridge only with 2 valve ports.

Answer by: Customer Support on Jul 24, 2025, 6:52 AM

What pressure range does this valve adjust to?

Question by: Rusty R on Jan 5, 2026, 8:47 PM

It adjusts from 600 to 3600 PSI using a screw adjustment.

Answer by: Customer Support on Jan 7, 2026, 4:57 PM

got a tight spot on a mobile rig. what do i need to mount this valve, is it just a screw-in deal or am i missing parts?

Question by: Carl S on Aug 19, 2025, 8:42 PM

For installation, it is a screw-in cartridge valve that requires a machined cavity or housing. The cavity size is C-10-2, and the housing is sold separately. It is a 2 port cartridge, so you will need the correct C-10-2 cavity and matching housing to mount it.

Answer by: Customer Support on Aug 21, 2025, 6:55 AM

Similar Products

Part Number	Model Number	Adjustable Range	Adjustment Style	Housing	Seal Material
565568	RV3-10-S-0-36/	600-3600	Screw	None	Buna-N
566688	RV3-10-S-0-3/	50-300	Screw	None	Buna-N
02-199334	RV3A-10-S-0-18/11	300-1800 (Set at 1100)	Screw	None	Buna-N
