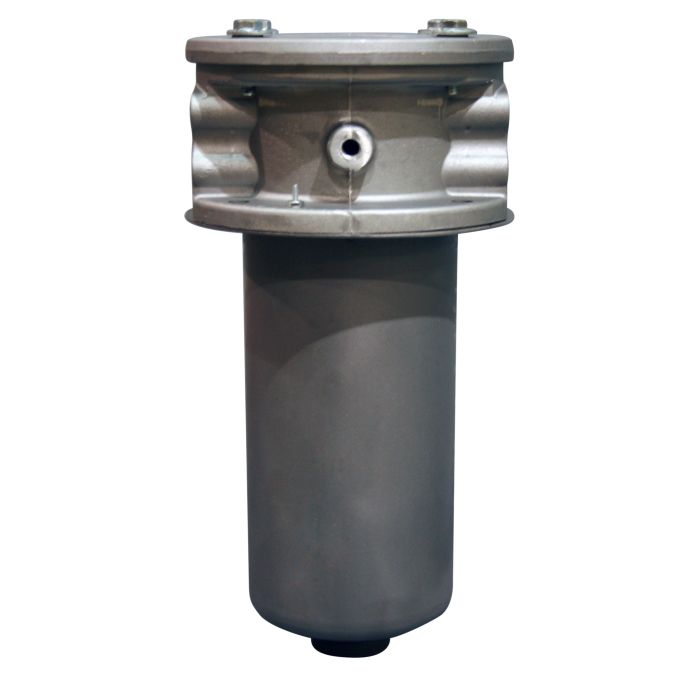

RT Series In-Tank Return Filters, Up To 100 GPM & 100 PSI
Bypass Setting |
Cracking: 25 psi, Full Flow: 48 psi. |
Element Change Clearance |
8.0'' for 1K; 17.50'' for KK; 26.5'' for 27K |
Features |
Low pressure tank-mounted filter with up to 3 inlet ports. Meets HF4 automotive standard. Top, side or bottom mounting. Optional check valve prevents reservoir siphoning. |
Flow Rating |
Up to 100 gpm for 150 SUS fluids |
Housing |
Die Cast Aluminum Porting Head and Cap, Steel Element Case. |
Maximum Operating Pressure |
100 psi. |
Temperature Range |
-20°F to 225°F |
Products
| Model Number | Length | Element | Micron Rating | Includes | Price | Buy Now |
|---|---|---|---|---|---|---|
| RT1KZ10S20NNY2 | 9.0 | Synthetic | 10 | Gauge |
|
