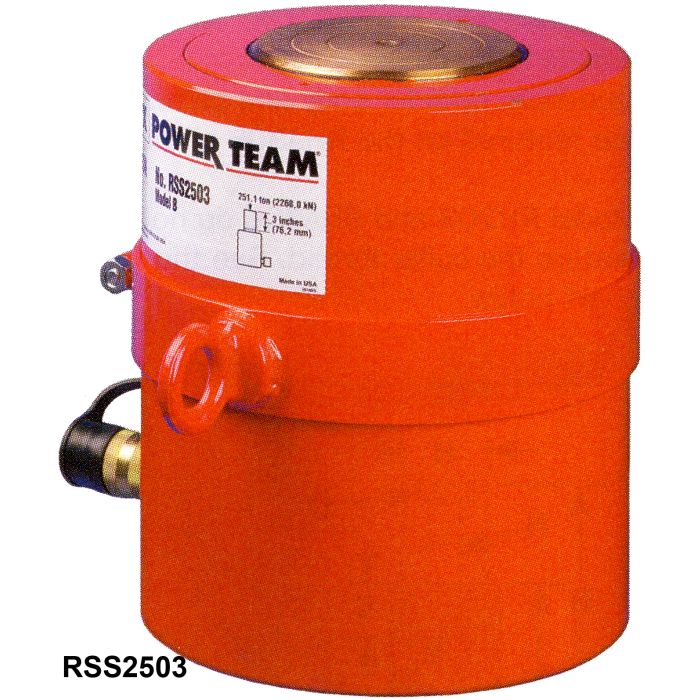

RSS Series Cylinders, Up To 250 Ton
Group Description |
Ideal for confined areas from 31/2'' to 117/16'' clearance. ASME B30.1 10,000 PSI. |
Features |
Bronze plated piston rods and gland nuts resist scoring and corrosion • Heavy duty return spring (except for double-acting models) provides fast piston return & low collapsed height • Coupler on 10 thru 50 ton models is angled upward 5° for added clearance • Grooved piston top keeps load from sliding • Cylinders can be “dead-ended” at full capacity • Removable carrying handles on 100 ton and 250 ton models. |
Products
| Model Number | Type | Capacity (tons) | Stroke | Oil Capacity | Retracted Height | Extended Height | Piston Rod Diameter H | Cylinder Effective Area (sq in) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|
| RSS1002 | 100 | 7.75 | 19.63 |
|
||||||
| RSS101 | 10 | 5 | 2.24 |
|
||||||
| RSS202 | 20 | 5.5 | 4.43 |
|
||||||
| RSS302 | 30 | 7.063 | 6.49 |
|
||||||
| RSS502 | 50 | 7.375 | 9.62 |
|
