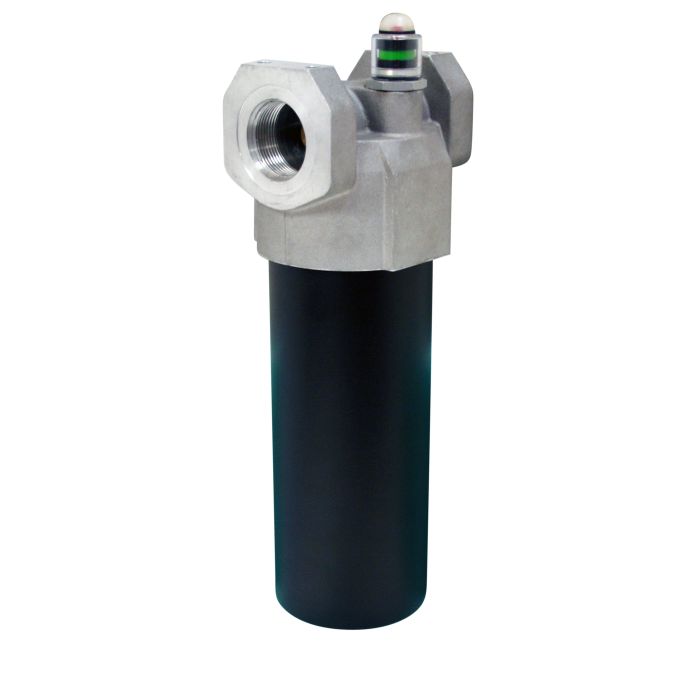

RLT Series 800 PSI Pressure Filters, Up To 70 GPM
Bypass Setting |
Cracking: 40 psi, Full Flow: 57 psi for P20 & S20 porting, Full Flow 75 psi for P16, S16, F16 & F20 porting. |
Element Change Clearance |
2.75'' |
Features |
Durable, compact design. Quick and easy cartridge element changeouts. Available in 9'' and 14'' element lengths. Offered in pipe, SAE straight thread, flange and ISO 228 porting. |
Flow Rating |
Up to 70 gpm for 150 SUS fluids for P20, S20, & B20 porting. Up to 50 gpm for 150 SUS fluids for P16, S16, F16, F20 & B16 porting |
Housing |
Aluminum Porting Head and Aluminum Element Case. |
Maximum Operating Pressure |
800 psi. |
Temperature Range |
-20°F to 225°F |
Products
| Model Number | Length | Element | Micron Rating | Seal Material | Ports | Includes | Features | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| RLT9VZ10S20D5 | 9 | Synthetic | 10 | Buna-N | SAE-20 | Visual Indicator |
|
