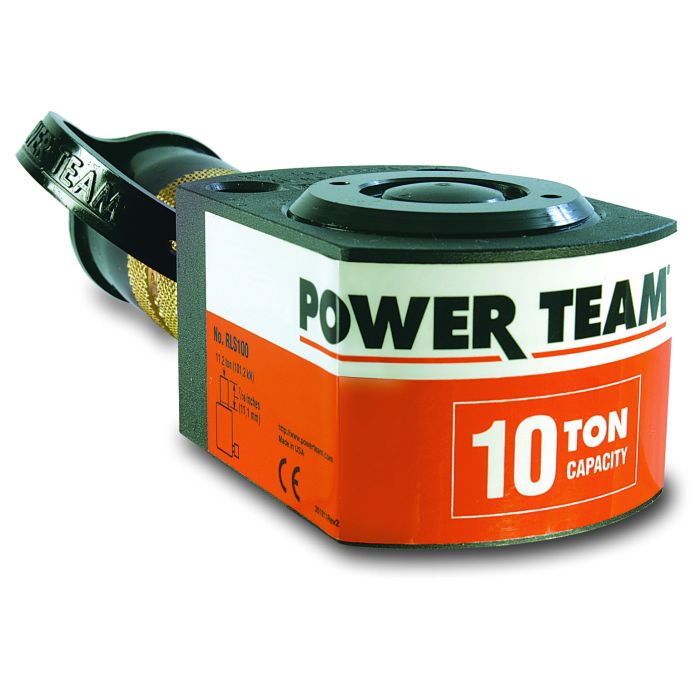

RLS Series Low Profile Single-Acting Cylinders, Up To 150 Ton
Group Description |
Ideal for confined areas from 15/8'' to 4'' clearance. ASME B30.1 10,000 PSI. |
Features |
Cylinder body, piston and gland nut “Power Tech” treated for corrosion and abrasion resistance • Standard domed piston rod (5-30 ton) or swivel cap (50-150 ton) minimize effects of off-center loading • Unique heavy duty spring provides fast piston return • A 9796 3/8'' NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8'' coupler which is not angled). Oil ports are 3/8'' NPTF (except the RLS50). • Couplers on all cylinders, except RLS50, are angled upward for extra clearance. |
Products
| Model Number | Capacity (tons) | Stroke | Oil Capacity | Retracted Height | Extended Height | Piston Rod Diameter H | Cylinder Effective Area (sq in) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| RLS100 | 10 | 2.188 | 2.236 |
|
|||||
| RLS1000S | 100 | 4 | 19.635 |
|
|||||
| RLS1500S | 150 | 4.563 | 30.680 |
|
|||||
| RLS200 | 20 | 2.438 | 4.430 |
|
|||||
| RLS300 | 30 | 2.813 | 6.492 |
|
|||||
| RLS50 | 5 | 2.188 | 0.994 |
|
|||||
| RLS500S | 50 | 3.25 | 9.621 |
|
