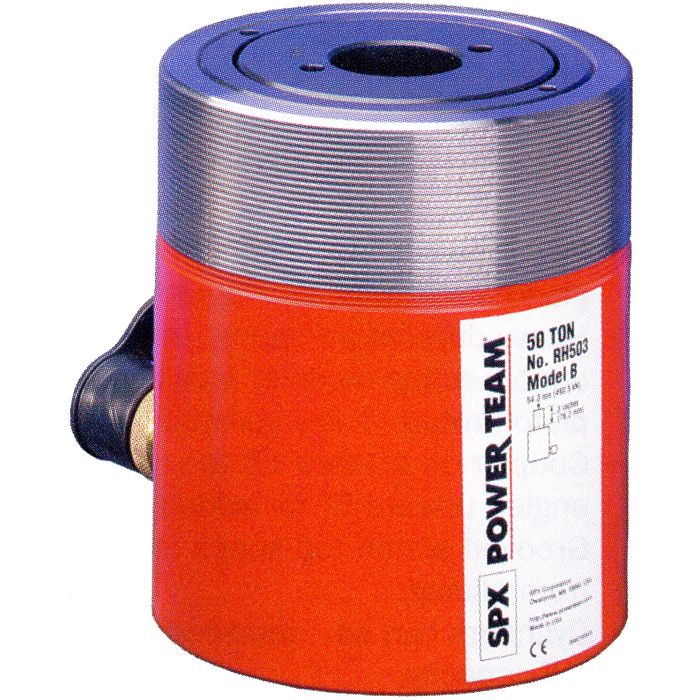

RH Series Center Hole Single-Acting Cylinders, Up To 100 Ton
Group Description |
Ideal for pulling and tensioning of cables, anchor bolts, forcing screws, etc. ASME B30.1 10,000 PSI. |
Features |
Interchangeable piston head inserts provide versatility of application • 12, 20*, 30*, 50, 60 Ton Single-Acting Models Feature Threaded Collar • Withstands full “dead-end” loads • Corrosion resistant standpipe has “Power Tech” treatment • All cylinders except RH120 are furnished with a 9796 3/8'' NPT female half coupler • Aluminum cylinder body and piston are featured on the RHA306 cylinder. * Model RH203 and RHA306 do not feature the collar thread. See the chart below. |
Products
| Model Number | Capacity (tons) | Stroke | Oil Capacity | Retracted Height | Extended Height | Thread 1 | Piston Rod Diameter H | Hole Dia. | Thread 2 | Cylinder Effective Area (sq in) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RH102 | 10 | 7.813 | 0.766 | 2.21 |
|
|||||||
| RH121 | 12 | 6.438 | 0.797 | 2.76 |
|
|||||||
| RH123 | 12 | 10.25 | 0.8125 | 2.76 |
|
|||||||
| RH202 | 20 | 8.125 | 1.078 | 4.72 |
|
|||||||
| RH203 | 20 | 9.063 | 1.047 | 3.92 |
|
|||||||
| RH302 | 30 | 8.75 | 1.297 | 6.34 |
|
|||||||
| RH306 | 30 | 15.75 | 1.281 | 6.34 |
|
|||||||
| RH603 | 60 | 12.25 | 2.125 | 12.31 |
|
