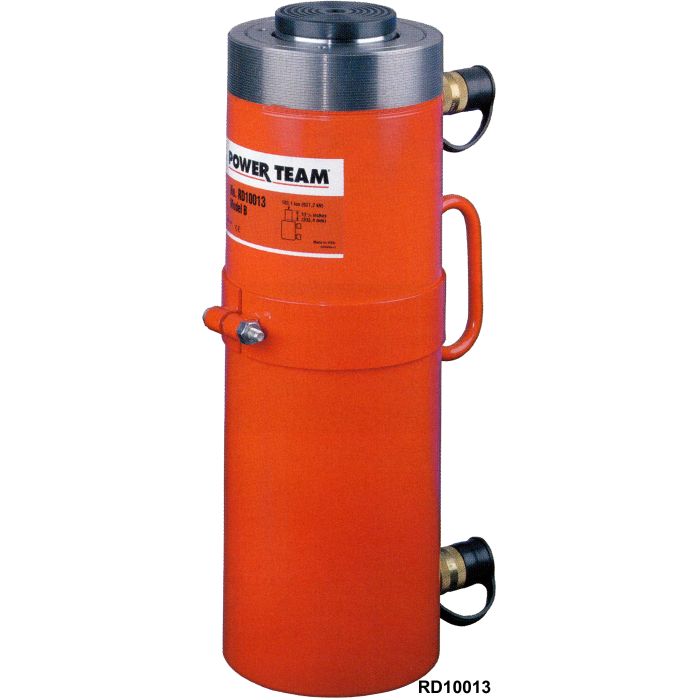

RD Series Double-Acting Cylinders, Up To 500 Ton
Group Description |
High tonnage premium design for high cycle life. ASME B30.1 10,000 PSI. |
Features |
Perfect for bridge lifting, building reconstruction, shipyard, utility and mining equipment maintenance • Aluminum bronze overlay bearings provide long life, chrome plated piston rod resist corrosion • Load cap snaps out to expose internal piston rod threads for pulling applications; threads withstand full tonnage • Grooved ring pattern in load cap helps guard against load slippage • Each cylinder has two 9796 3/8'' NPTF female half couplers • Built-in safety relief valve prevents over-pressurization of the retract circuit • All models include mounting holes and collar threads. |
Products
| Model Number | Capacity (tons) | Stroke | Oil Capacity | Retracted Height | Extended Height | Thread 1 | Piston Rod Diameter H | Thread 2 | Cylinder Effective Area (sq in) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RD10013 | 100 / 44 | 33.406 | 20.63 / 8.84 |
|
|||||||
| RD556 | 55 / 28 | 19.219 | 11.04 / 5.63 |
|
