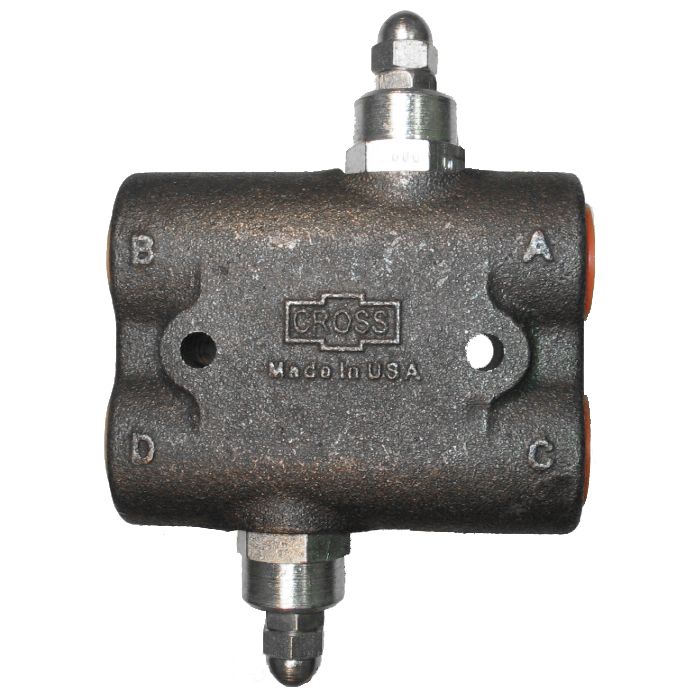

RC Series Cushion Valves (Double Relief Valves), Up To 3000 PSI & 30 GPM

Application	Cross model RC Cushion Valves are designed to protect equal displacement cylinders or motors from external or shock loads. Fluid which passes through one relief valve flows directly to the opposite side or circuit of the valve, thus preventing cavitation of the cylinder or motor as a result of relief discharge. (For cylinder applications, cylinder displacement must be equal in both directions for oil to relieve from one side to the other).
Features	Cartridge type hydraulically dampened poppet design. Quiet. Smaller differential between cracking and full-flow pressures.
Materials	High tensile gray iron housing. Hardened and ground steel poppet. Buna-N seals.
Maximum Flow Rate	30 GPM Maximum.
Maximum Operating Pressure	3000 PSI.

Products

Model Number	Adjustment Style	Adjustable Range	Pressure Setting	Price	Buy Now
RC12BB	Screw Adjustment with Acorn Nut	500-1500	1000
