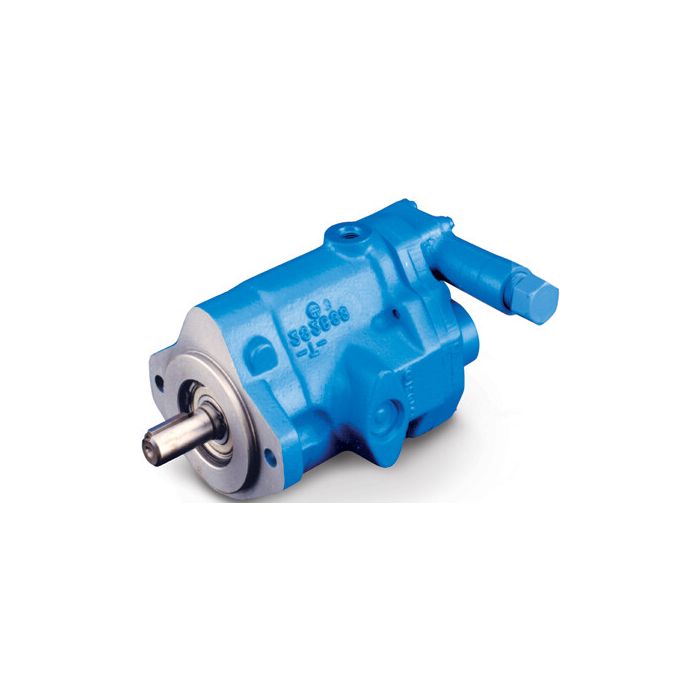

PVQ Series Industrial Piston Pump, 2.01 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, Reduced operating noise|Longer life|Lower operating pressure

Application Mining Machinery, Injection Molding Machines, Metal Forming Machines, Oil and Gas Equipment, Conveyor Lines, Primary Metals, Metal Cutting Equipment	Control Pressure Compensated (350-3000 PSI range, set 2000 PSI)	Displacement 2.01	Displacement 2.01	Brand Danfoss (Power Solutions II LLC)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Reduced operating noise\|Longer life\|Lower operating pressure	Maximum Operating Pressure 2000	Mount 2-Bolt SAE B	Mount 2-Bolt SAE B	Pressure Rating 2000	Rated Flow 15.66	Rated Flow 15.66	Shaft 7/8 Straight Keyed	Shaft 7/8 Straight Keyed	Special Features None	Supplier Part Number 02-341685	Alternate Part Numbers Alternate Part Number C1JV15	Product Weight 34.00 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this pump work okay with standard hydraulic fluid, or do I need something special?

Question by: Hugh J on Apr 15, 2025, 9:05 PM

These PVQ series pumps are rated assuming you're running standard anti-wear hydraulic fluid or even good ol' automotive crankcase oil with SC, SD, SE, or SF ratings per SAE J183FEB80. If you're planning on using fire-resistant fluids, get in touch with us so we can make sure it's a good match.

Answer by: Customer Support on Apr 17, 2025, 8:03 PM

got a PVQ32-B2R-SE1S-21-C14-12 here, is that the same pump as SKU 02-341685 or am i mixin things up

Question by: Gene H on Oct 4, 2025, 11:44 AM

Match-up is straightforward on this one. SKU 02-341685 is listed as model PVQ32-B2R-SE1S-21-C14-12, a PVQ Series variable displacement (piston) open circuit pump with 2.01 cu in/rev displacement.

Answer by: Customer Support on Oct 5, 2025, 12:50 PM

Similar Products

Part Number	Model Number	Displacement	Rated Flow	Control	Mount	Shaft	Features	Maximum Operating Pressure	Pressure Rating
02-341552	PVQ20-B2R-SE1S-21-C21-12	1.29	10	Pressure Compensated (350-3000 PSI range, set 3000 PSI)	2-Bolt SAE B	7/8 Straight Keyed	Reduced operating noise\|Longer life\|Lower operating pressure	3000	3000
02-341576	PVQ10-A2R-SE1S-20-C21-12	0.64	4.98	Pressure Compensated (350-3000 PSI range, set 3000 PSI)	2-Bolt SAE A	3/4 Straight Keyed	Reduced operating noise\|Longer life\|Lower operating pressure	3000	3000
02-341685	PVQ32-B2R-SE1S-21-C14-12	2.01	15.66	Pressure Compensated (350-3000 PSI range, set 2000 PSI)	2-Bolt SAE B	7/8 Straight Keyed	Reduced operating noise\|Longer life\|Lower operating pressure	2000	2000
