main product photo

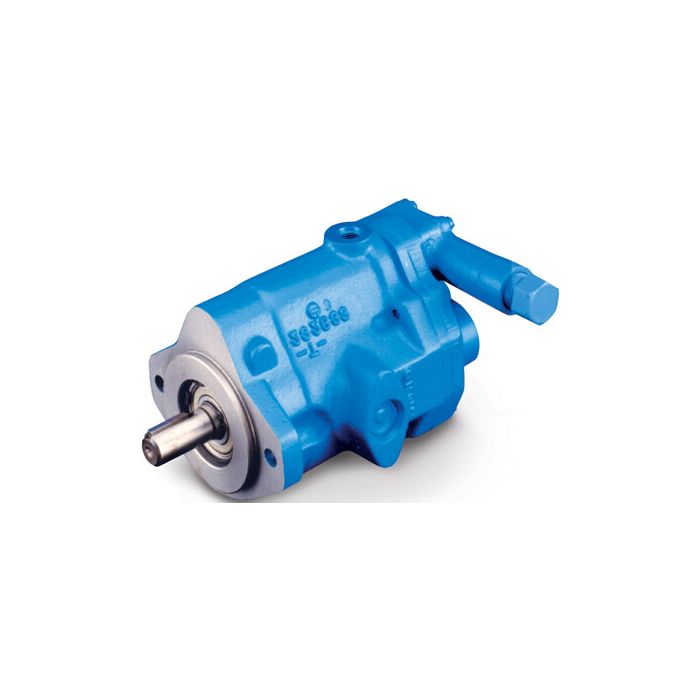

PVQ Series Industrial Piston Pump, 0.64 cu in/rev, 2-Bolt SAE A Mounting Flange, 3/4 Straight Keyed Shaft, Reduced operating noise|Longer life|Lower operating pressure

Ask A Question
Application
Mining Machinery, Injection Molding Machines, Metal Forming Machines, Oil and Gas Equipment, Conveyor Lines, Primary Metals, Metal Cutting Equipment
Control
Pressure Compensated (350-3000 PSI range, set 3000 PSI)
Displacement
0.64
Displacement
0.64
Brand
Danfoss (Power Solutions II LLC)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Reduced operating noise|Longer life|Lower operating pressure
Maximum Operating Pressure
3000
Mount
2-Bolt SAE A
Mount
2-Bolt SAE A
Pressure Rating
3000
Rated Flow
4.98
Rated Flow
4.98
Shaft
3/4 Straight Keyed
Shaft
3/4 straight Keyed
Special Features
None
Supplier Part Number
02-341576
Alternate Part Numbers
Alternate Part Number C1JR31, Alternate Part Number PVQ10A2RSE1S20C2112
Product Weight
25.30 lbs
Product Questions & Answers 2

Product Questions & Answers

What kind of machines does this pump work with?
Question by: Jerry P on Sep 15, 2025, 7:11 PM
This PVQ series piston pump is well-suited for machinery used in mining, injection molding, metal forming, oil and gas, and even conveyor lines.
Answer by: Customer Support on Sep 16, 2025, 8:01 PM
got a PVQ10 pump i’m swapping out, is this one the pressure compensated style and what pressure range does it work in
Question by: Cody M on Jan 18, 2026, 3:18 PM
For pressure control, it uses a pressure-compensated control that operates across a 350 to 3000 PSI range, with the setting at 3000 PSI. Maximum operating pressure is 3000 PSI.
Answer by: Customer Support on Jan 20, 2026, 10:45 AM

Similar Products

Part Number Model Number Displacement Rated Flow Control Mount Shaft Features Maximum Operating Pressure Pressure Rating Price Buy Now
02-341552 PVQ20-B2R-SE1S-21-C21-12 1.29 10 Pressure Compensated (350-3000 PSI range, set 3000 PSI) 2-Bolt SAE B 7/8 Straight Keyed Reduced operating noise|Longer life|Lower operating pressure 3000 3000
02-341576 PVQ10-A2R-SE1S-20-C21-12 0.64 4.98 Pressure Compensated (350-3000 PSI range, set 3000 PSI) 2-Bolt SAE A 3/4 Straight Keyed Reduced operating noise|Longer life|Lower operating pressure 3000 3000
02-341685 PVQ32-B2R-SE1S-21-C14-12 2.01 15.66 Pressure Compensated (350-3000 PSI range, set 2000 PSI) 2-Bolt SAE B 7/8 Straight Keyed Reduced operating noise|Longer life|Lower operating pressure 2000 2000
