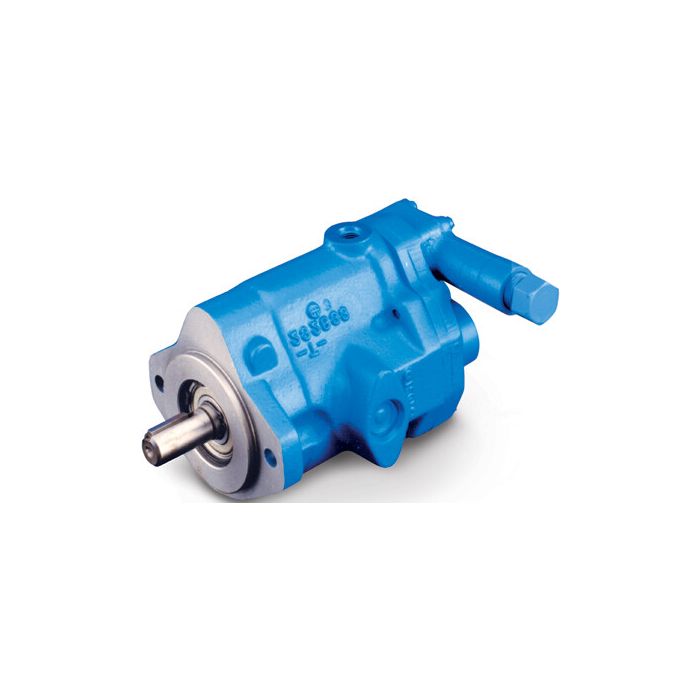

main product photo

PVQ Series Industrial Piston Pump, 1.29 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed Shaft, Reduced operating noise|Longer life|Lower operating pressure

Ask A Question
Application
Mining Machinery, Injection Molding Machines, Metal Forming Machines, Oil and Gas Equipment, Conveyor Lines, Primary Metals, Metal Cutting Equipment
Control
Pressure Compensated (350-3000 PSI range, set 3000 PSI)
Design Code
21
Displacement
1.29
Displacement
1.29
Brand
Danfoss (Power Solutions II LLC)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Reduced operating noise|Longer life|Lower operating pressure
Maximum Operating Pressure
3000
Mount
2-Bolt SAE B
Mount
2-Bolt SAE B
Pressure Rating
3000
Rated Flow
10
Rated Flow
10
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Supplier Part Number
02-341552
Alternate Part Numbers
Alternate Part Number C1JR28, Alternate Part Number PVQ20B2RSE1S20C2111, Alternate Part Number PVQ20B2RSE1S21C2112
Product Weight
85.00 lbs
Product Questions & Answers 1

Product Questions & Answers

pump case gotta be filled before startup or will it prime itself?
Question by: Ralph T on Jul 23, 2025, 12:56 PM
Fill the case through the uppermost drain port with hydraulic fluid before you ever fire it up. It won't self-prime the case, and running it dry even briefly can cause real damage. Keep that case full during operation and make sure your drain line runs straight back to the reservoir and stays submerged below the oil level.
Answer by: Customer Support on Jul 25, 2025, 7:01 AM

Similar Products

Part Number Model Number Displacement Rated Flow Control Mount Shaft Features Maximum Operating Pressure Pressure Rating Price Buy Now
02-341552 PVQ20-B2R-SE1S-21-C21-12 1.29 10 Pressure Compensated (350-3000 PSI range, set 3000 PSI) 2-Bolt SAE B 7/8 Straight Keyed Reduced operating noise|Longer life|Lower operating pressure 3000 3000
02-341576 PVQ10-A2R-SE1S-20-C21-12 0.64 4.98 Pressure Compensated (350-3000 PSI range, set 3000 PSI) 2-Bolt SAE A 3/4 Straight Keyed Reduced operating noise|Longer life|Lower operating pressure 3000 3000
02-341685 PVQ32-B2R-SE1S-21-C14-12 2.01 15.66 Pressure Compensated (350-3000 PSI range, set 2000 PSI) 2-Bolt SAE B 7/8 Straight Keyed Reduced operating noise|Longer life|Lower operating pressure 2000 2000
