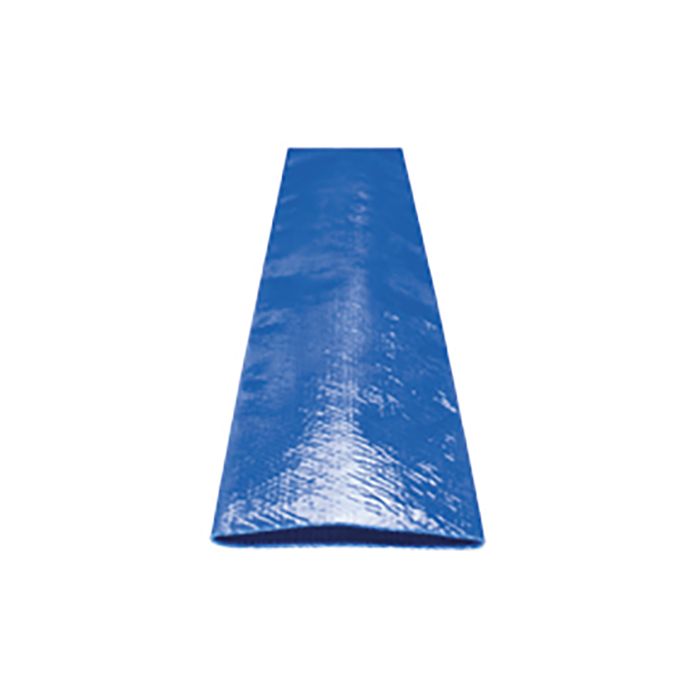

PVC Water Discharge Blue Layflat Hose
Application |
A general purpose PVC water discharge hose. |
Construction |
Features a balanced polyester yarn spiral wrap, longitudinal strength member and homogeneous PVC tube and cover to prevent separation. |
Fittings |
Shank Type (Aluminium, Steel, Brass, Stainless Steel). Cam & Groove (Aluminum, Polypropylene) |
Fittings & Fitting Attachment Suggestions |
• Aluminum, malleable iron or brass shank type fittings attached with preformed clamps. • Cam & Groove type fittings attached with preformed clamps. |
Temperature Range |
-5°F to 170°F. |
Products
| Model Number | Size | Hose I.D. | Wall Thickness | Maximum Working Pressure | Length | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| BU200-PVC-DISCHA | 2 in | 2.087 | 0.048 | 65 | 300 |
|
|
| BU300-PVC-DISCHA | 3 in | 3.071 | 0.055 | 60 | 300 |
|
|
| BU400-PVC-DISCHA | 4 in | 4.134 | 0.083 | 70 | 300 |
|
|
| BU600-PVC-DISCHA | 6 in | 6.102 | 0.061 | 40 | 300 |
|
