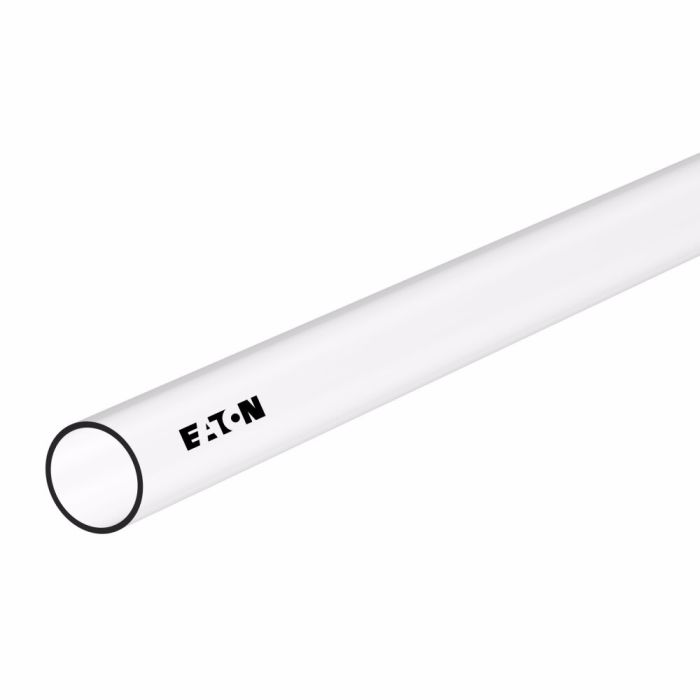

DANFOSS / EATON PVC CLEAR 3/8 ID TUBING PT20004NA-100

Specifications

Abrasion Resistance 28	Application Air and general purpose.	Certifications NSF-51	Color Natural	Compliances FDA Approved	Conductivity 30	Construction Extruded	Cover Material PVC	Dash Size -4	Brand Danfoss (Aeroquip Inc-Industrial Hose)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 1	Minimum Bend Radius 1	Minimum Working Temperature -5	Net Pack Quantity Units FT	NMFC 70	Product Width 0.25	Qualified Hose Fittings Polyline, SelfAlign with 2030x insert, Compression with 2030x insert, Molded Compression	Sub Brand None	Supplier Part Number PT20004NA-100	Tube Material Polyvinyl Chloride (PVC)	Product Weight 0.02 lbs

Product Questions & Answers 3

Product Questions & Answers

Need some clear line for a drink setup so i can see flow, is this tubing actually ok for food contact?

Question by: Frank M on Mar 24, 2026, 5:40 PM

For food and beverage work where you want to visually monitor flow, the clear PVC construction fits that use and it is both NSF-51 certified and FDA approved for contact with food-grade media.

Answer by: Customer Support on Mar 26, 2026, 6:21 AM

What kind of fittings work with this clear tubing?

Question by: Neil C on Jun 8, 2025, 12:24 PM

This tubing is qualified for use with Polyline, SelfAlign (with a 2030x insert), Compression (also with a 2030x insert), and Molded Compression fittings, so you have a few options depending on your setup.

Answer by: Customer Support on Jun 9, 2025, 2:18 PM

tubing says it's food grade, is it actually cleared for contact with what's going inside the line, or is that just a general rating?

Question by: Chad R on Dec 13, 2025, 10:07 AM

NSF-51 certification and FDA approval both specifically cover food-contact materials, so this tubing meets those standards for direct contact with food and beverage media. The clear PVC construction is also useful in those setups because you can see flow or any discoloration without pulling the line apart. That combination is why it gets used in food and beverage applications rather than just general industrial runs.

Answer by: Customer Support on Dec 15, 2025, 7:19 AM
