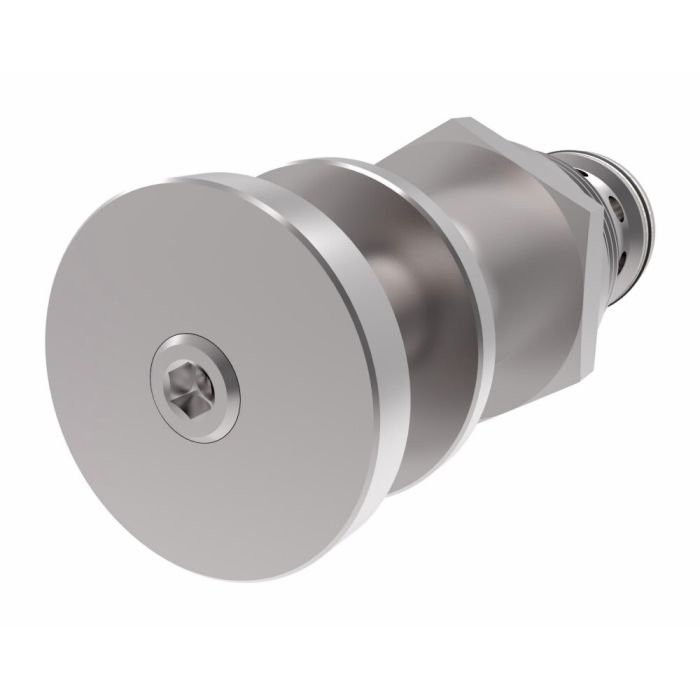

PRV2-16 Series Pilot-Operated Pressure Reducing (Relieving) Cartridge Valve, 1000-6000 PSI (Factory Setting At 3500.00), Screw Adjustment

Adjustment No	Adjustment Style Screw	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Cracking Pressure (psi) 1000-6000	Diode No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Electrical Flag No	Housing None	Installation Type Screw-in Cartridge	Leakage 0.25 cc/min	Minimum Working Pressure 70	Number of Housing Ports 3	Number of Valve Ports 3	Operation Pilot Operated	Port Type Cartrige Only	Pressure Setting 3500	Recommended Filtration Level 18/16/13 microns	Remote Control No	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Spool	Supplier Part Number 566376	Switch Connector No	Valve Material Cartridge only	Alternate Part Numbers Alternate Part Number C1MG59, Alternate Part Number PRV216S060/	Product Weight 0.94 lbs

Product Questions & Answers 2

Product Questions & Answers

Can this valve handle pressures up to 5000 PSI without a steel housing?

Question by: Ricky S on Oct 19, 2025, 12:30 PM

No, pressures over 3000 PSI require a steel housing for this valve. That's a must to keep things safe and working right.

Answer by: Customer Support on Oct 21, 2025, 6:50 AM

factory set at 3500 but the job calls for something closer to 4500 PSI -- is that something you can dial in with the screw adjustment or is it locked from the factory?

Question by: Howard G on Nov 8, 2025, 6:38 AM

The screw adjustment on this valve lets you set pressure anywhere in the 1000 to 6000 PSI range, so dialing up to 4500 is well within what it can handle. Just keep in mind that anything above 3000 PSI requires a steel housing. The cavity size is C-16-3, sold separately, so make sure whatever housing you're sourcing is rated for the pressure you're running.

Answer by: Customer Support on Nov 10, 2025, 6:59 AM

Similar Products

Part Number	Model Number	Adjustment Style	Cracking Pressure (psi)	Pressure Setting	Housing	Seal Material	Price	Buy Now
566376	PRV2 16 S 0 60	Screw	1000-6000	3500	None	Buna-N
