Proportional Flow Dividers With Free Reverse Flow, Up To 30 GPM & 3000 PSI

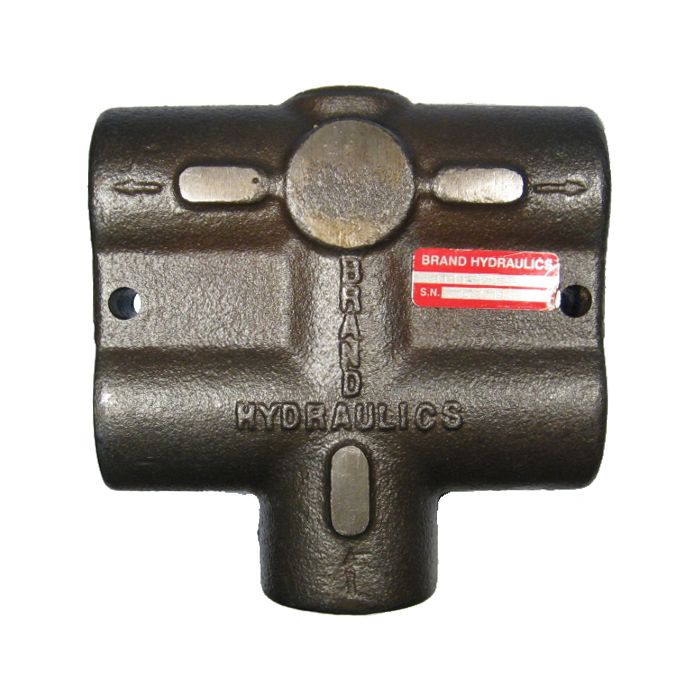

Application	The B-100 is a non-adjustable divider that receives a single stream and divides into two streams. The two outlet flows are pressure compensating and the sum of outlet flows equal the inlet flow. Flow can travel in reverse through both outlet ports and is not metered when going in reverse. The standard outlet flow ratio is 50:50. WARNING: Spool may bind if valve is mounted with bolts through valve against a flat surface (housing can distort). Mount valve with rigid spacers between valve body and mounting surface to prevent housing distortion.
Features	Precision ground heat treated spools for long life. Pressure compensation for both outlet ports. Free reverse flow. Every valve is factory tested for flow ratio and pressure compensation.
Materials	Cast iron body. Buna-N O-Rings. Heat treated steel spool.
Maximum Operating Pressure	3000 PSI.
Recommended Filtration	30 micron.

Products

Model Number	Flow Range	Outlet Flow Ratio	Price	Buy Now
B-100-3/4	16-30 GPM	50:50
B100-3/8	2-8 GPM	50:50
