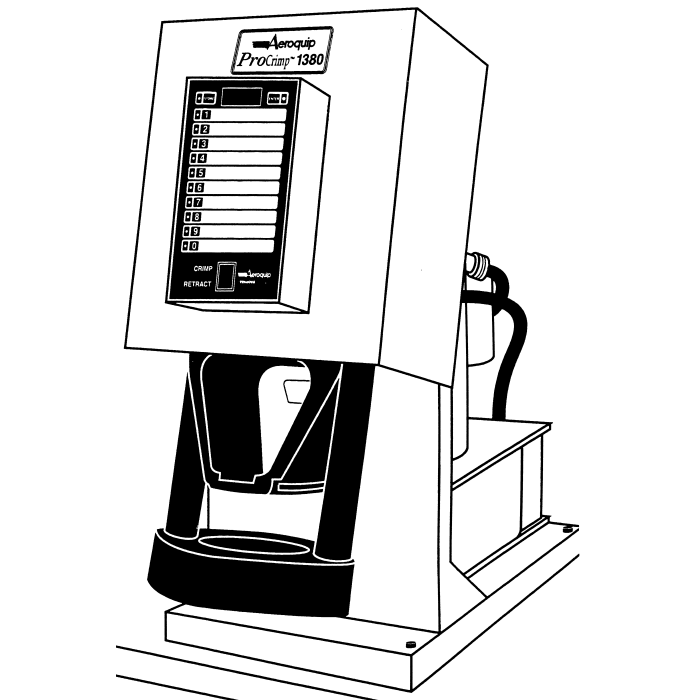

Aeroquip ProCrimp 1380 Crimp Machines and Accessories
Crimp Machine Dimensions |
Width 12.75 in., Depth 25.75 in., Height 28.50 in. |
Electrical Requirements |
115-Volt AC single phase (50/60)Hz circuit with a minimum of 15 amps. |
For Use With |
All Aeroquip® MatchMate Plus™ braided and spiral hose through -20 size. Flat field crimp thru -16. Barrel field crimp thru -20. Flat single skive 1 & 2-wire braid crimp thru -20. Flat single skive 4-wire spiral crimp thru -16. |
Unit will not crimp |
Internal skive fittings. Hose that requires a positive stop, including the following Aeroquip® hoses: 2807, 2808, FC186, FC465, FC469, FC505. |
Products
| Model Number | Product Description | Price | Buy Now |
|---|---|---|---|
| FT1380-200-M180 | Danfoss / Eaton FT1380 Series Die Cage |
|
|
| FT1380-275-M465 | Danfoss / Eaton Crimp Die Cage Assy |
|
FAQs
What is the Aeroquip ProCrimp 1380 used for?
The Aeroquip ProCrimp 1380 is used to crimp MatchMate Plus™ braided and spiral hydraulic hoses up to size -20. It supports flat field, barrel field, and flat single skive crimping for various 1- and 2-wire braid and 4-wire spiral hoses.
What parts are available for the ProCrimp 1380?
HSC offers genuine Danfoss / Eaton ProCrimp 1380 die cages and complete die cage assemblies. These components are designed for compatibility with the 1380 crimping system.
What hoses are not compatible with the ProCrimp 1380?
The ProCrimp 1380 is not compatible with internal skive fittings or hoses that require a positive stop, including Aeroquip® 2807, 2808, FC186, FC465, FC469, and FC505 hoses.
Why buy these products from HSC?
HSC is an authorized Danfoss / Eaton distributor offering authentic parts, competitive pricing, and expert support. All ProCrimp 1380 components ship from trusted U.S. locations with fast, reliable service.
