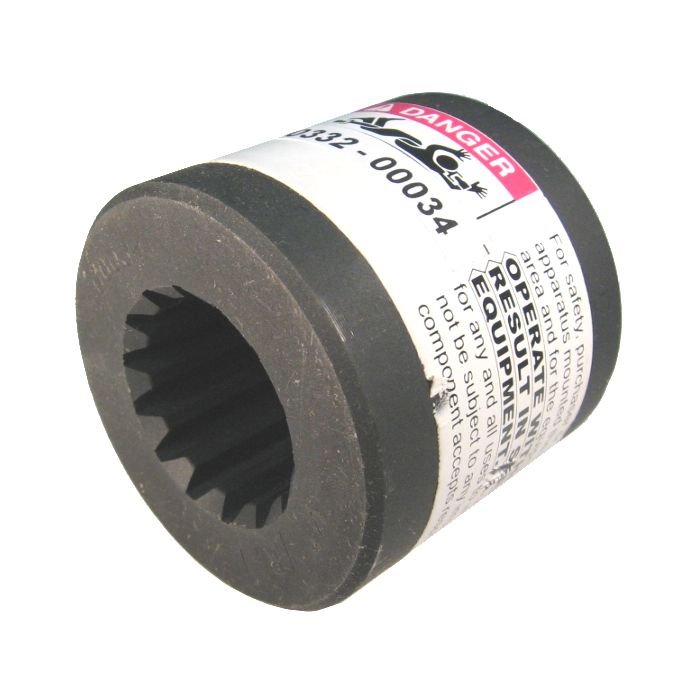

Precision Splined Hubs
Features |
Made from low alloy, high carbon steel. Close tolerance O.D. and I.D. concentricity permits accurate mounting of sheave or sprocket. Precision also permits accurate chucking for additional mounting. |
Products
| Model Number | Type | Spline Details | O.D. | Length | Price | Buy Now |
|---|---|---|---|---|---|---|
| 03-32-00032 | 9 Tooth SAE A | 16/32 DP, 30° PA, 5/8 O.D. | 1.25 in | 1.250 |
|
|
| 03-32-00033 | 13 Tooth SAE B | 16/32 DP, 30° PA, 7/8 O.D. | 1.5 in | 1.50 |
|
|
| 03-32-00034 | 14 Tooth SAE C | 12/24 DP, 30° PA, 1-1/4 O.D. | 2.25 in | 2.00 |
|
|
| 03-32-00074 | 13 Tooth SAE D | 8/16 DP, 30° PA, 1-3/4 O.D. | 3 in | 2.25 |
|
