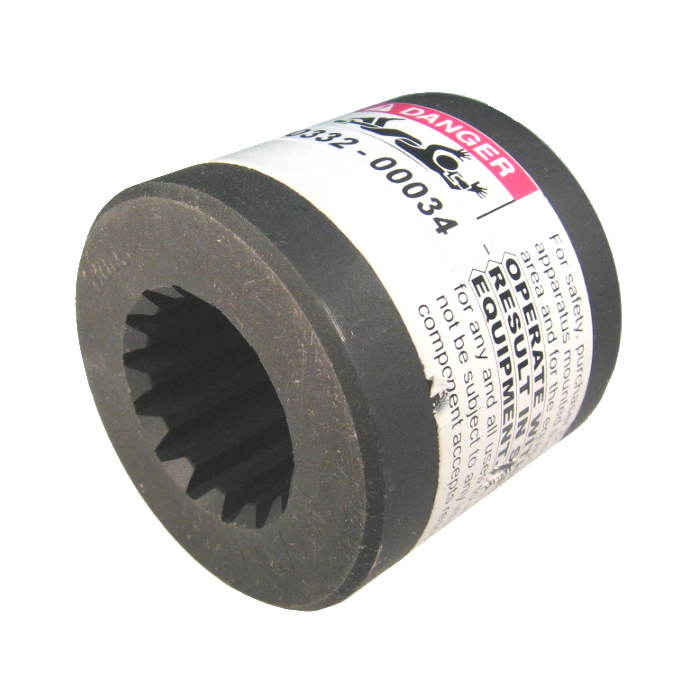

Precision Splined Hub, 13 Tooth SAE B, 16/32 DP, 30° PA, 7/8 O.D. Spline, 1.50 Inch OD, 1.50 Inch Long

Brand MOTION INDUSTRIES INC - IS22	Brand Motion Industries	Pack Size 1.00	UOM EA	Length 1.50	O.D. 1.5 in	Spline Details 16/32 DP, 30° PA, 7/8 O.D.	Supplier Part Number 0332-00033	Type 13 Tooth SAE B	Alternate Part Numbers Alternate Part Number C1AD60, Alternate Part Number MI-00890768, Alternate Part Number MINO-00435X10724	Product Weight 1.00 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the tooth count and spline spec on this hub, trying to match it up to an SAE B pump mount

Question by: Denise M on Sep 2, 2025, 6:21 AM

You're looking at 13 teeth, SAE B configuration, with a 16/32 diametral pitch and a 30 degree pressure angle. The O.D. spline measures 7/8 inch. Those details together should tell you pretty quick whether it lines up with your pump mount.

Answer by: Customer Support on Sep 4, 2025, 6:16 AM

Will this hub work for mounting a sprocket on a shaft?

Question by: Wade W on Jul 16, 2025, 10:38 AM

Made from low alloy, high carbon steel with close tolerances, this splined hub is designed for accurate mounting of sheaves or sprockets.

Answer by: Customer Support on Jul 18, 2025, 10:24 AM

trying to match up a splined hub i pulled off a setup, what are the key spline specs on this one?

Question by: Wade G on Jul 17, 2025, 3:23 PM

For matching, the important callouts are 13 Tooth SAE B with a 7/8 O.D. spline, and the spline form listed as 16/32 DP with a 30° pressure angle.

Answer by: Customer Support on Jul 19, 2025, 6:04 AM

Similar Products

Model Number	Type	Spline Details	O.D.	Length
03-32-00032	9 Tooth SAE A	16/32 DP, 30° PA, 5/8 O.D.	1.25 in	1.250
03-32-00033	13 Tooth SAE B	16/32 DP, 30° PA, 7/8 O.D.	1.5 in	1.50
03-32-00034	14 Tooth SAE C	12/24 DP, 30° PA, 1-1/4 O.D.	2.25 in	2.00
03-32-00074	13 Tooth SAE D	8/16 DP, 30° PA, 1-3/4 O.D.	3 in	2.25
