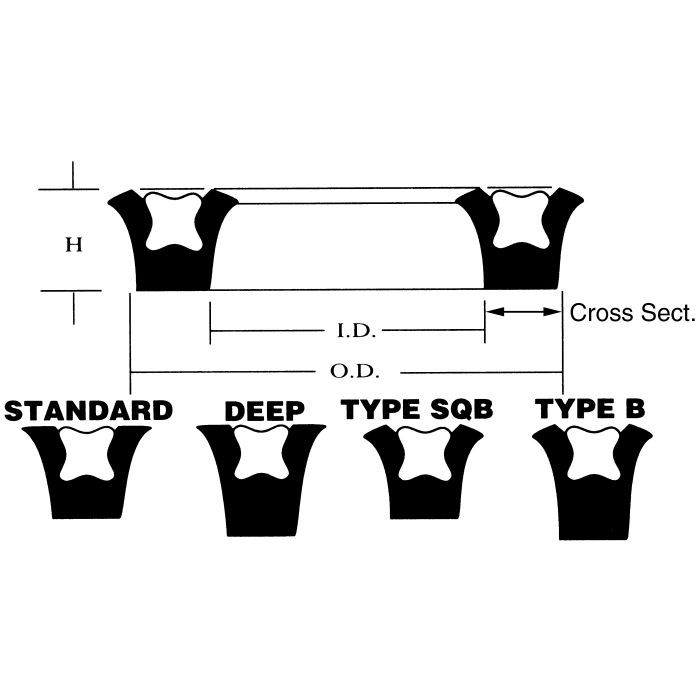

Polyurethane U-Seal, 0.56 Inch OD, 0.31 Inch ID, 0.25 Inch Height
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Supplier Part Number
U12-0.31-25B
Alternate Part Numbers
Alternate Part Number
C1DM73 ,
Alternate Part Number
MI-02250021 ,
Alternate Part Number
MINO-00407X31585
Got a small hydraulic cylinder that needs a rod seal, outside diameter on the rod housing is 0.563 in and the rod itself measures 0.3125 in. this seal gonna fit that setup?
Question by: Ray A on May 17, 2025, 8:04 PM
Those dimensions line up exactly with what this seal is built for. The 0.563 inch OD seats into the housing bore, the 0.3125 inch ID rides the rod, and the 0.25 inch height fits the groove depth for that configuration. The beveled lip design helps it break the fluid film cleanly across the rod surface, which keeps the seal working right without building up pressure behind it.
Answer by: Customer Support on May 19, 2025, 11:12 AM
trying to match up a little u-seal, are these sizes the actual measurements or just a label?
Question by: Hugh A on Mar 26, 2026, 6:43 AM
For this one, the dimensions are given as actual sizes: 0.563 inch outside diameter, 0.3125 inch inside diameter, and 0.25 inch height. The cross section is 0.125 inch.
Answer by: Customer Support on Mar 28, 2026, 6:43 AM
reckon this'll hold up alright in my hydraulic cylinder? i'm usin it pretty hard ya know
Question by: Joyce S on Jun 2, 2025, 10:30 AM
This U-seal is rated to handle pressures up to 6,000 PSI, so it should be suitable for demanding hydraulic applications. Its polyurethane construction also makes it durable over a temperature range of -65°F to 220°F.
Answer by: Customer Support on Jun 3, 2025, 12:23 PM
Similar Products
Model Number
Cross Section
I.D.
O.D.
H
Price
Buy Now
U12-0.62-25B
0.125 in
0.625 in
0.875 in
0.25 in
U12-1.00-25B
0.125 in
1 in
1.25 in
0.25 in
U12-1.25-SQB
0.125 in
1.25 in
1.5 in
0.125 in
U18-1.25-SQB
0.1875 in
1.25 in
1.625 in
0.1875 in
U18-1.75-37B
0.1875 in
1.75 in
2.125 in
0.375 in
U18-2.12-SQB
0.1875 in
2.125 in
2.5 in
0.1875 in
U18-2.50-31B
0.1875 in
2.5 in
2.875 in
0.3125 in
U25-1.25-37B
0.25 in
1.25 in
1.75 in
0.375 in
U25-1.50-37B
0.25 in
1.5 in
2 in
0.375 in
U25-2.00-37B
0.25 in
2 in
2.5 in
0.375 in
U25-2.50-37B
0.25 in
2.5 in
3 in
0.375 in
U25-3.00
0.25 in
3 in
3.5 in
0.25 in
U25-3.00-37B
0.25 in
3 in
3.5 in
0.375 in
U25-3.50-37B
0.25 in
3.5 in
4 in
0.375 in
U25-4.00-SQB
0.25 in
4 in
4.5 in
0.25 in
U25-4.50
0.25 in
4.5 in
5 in
0.25 in
U25-5.00
0.25 in
5 in
5.5 in
0.25 in
U12-0.18-25B
0.125 in
0.1875 in
0.438 in
0.25 in
U12-0.25-25B
0.125 in
0.25 in
0.5 in
0.25 in
U12-0.25-SQB
0.125 in
0.25 in
0.5 in
0.125 in
U12-0.31-25B
0.125 in
0.3125 in
0.563 in
0.25 in
U12-0.31-SQB
0.125 in
0.3125 in
0.563 in
0.125 in
U12-0.37
0.125 in
0.375 in
0.625 in
0.125 in
U12-0.50-25B
0.125 in
0.5 in
0.75 in
0.25 in
U12-0.50-SQB
0.125 in
0.5 in
0.75 in
0.125 in
U12-0.56
0.125 in
0.625 in
0.938 in
0.125 in
U12-0.62-SQB
0.125 in
0.625 in
0.875 in
0.125 in
U12-0.68
0.125 in
0.6875 in
0.938 in
0.125 in
U12-0.75-18B
0.125 in
0.75 in
1 in
0.1875 in
U12-0.75-25B
0.125 in
0.75 in
1 in
0.25 in
U12-0.75-SQB
0.125 in
0.75 in
1 in
0.125 in
U12-0.81
0.125 in
0.8125 in
1.063 in
0.125 in
U12-0.87-25B
0.125 in
0.875 in
1.125 in
0.25 in
U12-0.87-SQB
0.125 in
0.875 in
1.125 in
0.125 in
U12-1.00-18B
0.125 in
1 in
1.25 in
0.1875 in
U12-1.00-SQB
0.125 in
1 in
1.25 in
0.125 in
U12-1.06-SQB
0.125 in
1.0625 in
1.313 in
0.125 in
U12-1.12-25B
0.125 in
1.0625 in
1.375 in
0.25 in
U12-1.12-SQB
0.125 in
1.0625 in
1.375 in
0.125 in
U12-1.18
0.125 in
0.188 in
1.438 in
0.125 in
U12-1.18-18B
0.125 in
0.188 in
1.438 in
0.1875 in
U12-1.18-25B
0.125 in
0.188 in
1.438 in
0.25 in
U12-1.25-18B
0.125 in
1.25 in
1.5 in
0.1875 in
U12-1.25-25B
0.125 in
1.25 in
1.5 in
0.25 in
U12-1.37-25B
0.125 in
1.375 in
1.625 in
0.25 in
U12-1.37-SQB
0.125 in
1.375 in
1.625 in
0.125 in
U12-1.50-25B
0.125 in
1.5 in
1.75 in
0.25 in
U12-1.50-SQB
0.125 in
1.5 in
1.75 in
0.125 in
U12-1.62-SQB
0.125 in
1.625 in
1.875 in
0.125 in
U12-1.75-SQB
0.125 in
1.75 in
2 in
0.125 in
U12-2.00
0.125 in
2 in
2.25 in
0.125 in
U12-2.25
0.125 in
2.25 in
2.5 in
0.125 in
U12-2.75
0.125 in
2.75 in
3 in
0.125 in
U15-1.18
0.1563 in
0.188 in
1.5 in
0.1563 in
U15-1.25
0.1563 in
1.25 in
1.563 in
0.1563 in
U15-1.37
0.1563 in
1.375 in
1.688 in
0.1563 in
U18-0.50
0.1875 in
0.5 in
0.875 in
0.1875 in
U18-0.62-31B
0.1875 in
0.625 in
1 in
0.3125 in
U18-0.62-SQB
0.1875 in
0.625 in
1 in
0.1875 in
U18-0.75-31B
0.1875 in
0.75 in
1.125 in
0.3125 in
U18-0.75-SQB
0.1875 in
0.75 in
1.125 in
0.1875 in
U18-0.87-31B
0.1875 in
0.875 in
1.25 in
0.3125 in
U18-0.87-SQB
0.1875 in
0.875 in
1.25 in
0.1875 in
U18-1.00-25B
0.1875 in
1 in
1.375 in
0.25 in
U18-1.00-31B
0.1875 in
1 in
1.375 in
0.3125 in
U18-1.00-37B
0.1875 in
1 in
1.375 in
0.375 in
U18-1.00-SQB
0.1875 in
1 in
1.375 in
0.1875 in
U18-1.12-25B
0.1875 in
1.0625 in
1.5 in
0.25 in
U18-1.12-31B
0.1875 in
1.0625 in
1.5 in
0.3125 in
U18-1.12-SQB
0.1875 in
1.0625 in
1.5 in
0.1875 in
U18-1.18
0.1875 in
0.188 in
1.563 in
0.1875 in
U18-1.25-25B
0.1875 in
1.25 in
1.625 in
0.25 in
U18-1.25-31B
0.1875 in
1.25 in
1.625 in
0.3125 in
U18-1.25-37B
0.1875 in
1.25 in
1.625 in
0.375 in
U18-1.37-25B
0.1875 in
1.375 in
1.75 in
0.25 in
U18-1.37-31B
0.1875 in
1.375 in
1.75 in
0.3125 in
U18-1.37-37B
0.1875 in
1.375 in
1.75 in
0.375 in
U18-1.37-SQB
0.1875 in
1.375 in
1.75 in
0.1875 in
U18-1.50-25B
0.1875 in
1.5 in
1.875 in
0.25 in
U18-1.50-31B
0.1875 in
1.5 in
1.875 in
0.3125 in
U18-1.50-37B
0.1875 in
1.5 in
1.875 in
0.375 in
U18-1.50-SQB
0.1875 in
1.5 in
1.875 in
0.1875 in
U18-1.62
0.1875 in
1.625 in
2 in
0.1875 in
U18-1.62-25B
0.1875 in
1.625 in
2 in
0.25 in
U18-1.62-31B
0.1875 in
1.625 in
2 in
0.3125 in
U18-1.62-37B
0.1875 in
1.625 in
2 in
0.375 in
U18-1.62-SQB
0.1875 in
1.625 in
2 in
0.1875 in
U18-1.75-25B
0.1875 in
1.75 in
2.125 in
0.25 in
U18-1.75-31B
0.1875 in
1.75 in
2.125 in
0.3125 in
U18-1.75-SQB
0.1875 in
1.75 in
2.125 in
0.1875 in
U18-1.87-37B
0.1875 in
1.875 in
2.25 in
0.375 in
U18-1.87-SQB
0.1875 in
1.875 in
2.25 in
0.1875 in
U18-2.00-31B
0.1875 in
2 in
2.375 in
0.3125 in
U18-2.00-37B
0.1875 in
2 in
2.375 in
0.375 in
U18-2.00-SQB
0.1875 in
2 in
2.375 in
0.1875 in
U18-2.12-25B
0.1875 in
2.125 in
2.5 in
0.25 in
U18-2.25-37B
0.1875 in
2.25 in
2.625 in
0.375 in
U18-2.25-SQB
0.1875 in
2.25 in
2.625 in
0.1875 in
U18-2.37-SQB
0.1875 in
2.375 in
2.75 in
0.1875 in
U18-2.50-25B
0.1875 in
2.5 in
2.875 in
0.25 in
U18-2.50-37B
0.1875 in
2.5 in
2.875 in
0.375 in
U18-2.50-SQB
0.1875 in
2.5 in
2.875 in
0.1875 in
U18-2.62-37B
0.1875 in
2.625 in
3 in
0.375 in
U18-2.62-SQB
0.1875 in
2.625 in
3 in
0.1875 in
U18-2.75-37B
0.1875 in
2.75 in
3.125 in
0.375 in
U18-2.75-SQB
0.1875 in
2.75 in
3.125 in
0.1875 in
U18-2.87
0.1875 in
2.875 in
3.25 in
0.1875 in
U18-3.00
0.1875 in
3 in
3.375 in
0.1875 in
U18-3.00-37B
0.1875 in
3 in
3.375 in
0.375 in
U18-3.12-37B
0.1875 in
3.125 in
3.5 in
0.375 in
U18-3.12-SQB
0.1875 in
3.125 in
3.5 in
0.1875 in
U18-3.50-37B
0.1875 in
3.5 in
3.875 in
0.375 in
U18-3.62-37B
0.1875 in
3.625 in
4 in
0.375 in
U18-3.62-SQB
0.1875 in
3.625 in
4 in
0.1875 in
U18-4.00-37B
0.1875 in
4 in
4.375 in
0.375 in
U25-0.75
0.25 in
0.75 in
1.25 in
0.25 in
U25-0.93
0.25 in
0.8125 in
1.438 in
0.25 in
U25-1.00-37B
0.25 in
1 in
1.5 in
0.375 in
U25-1.00-SQB
0.25 in
1 in
1.5 in
0.25 in
U25-1.12
0.25 in
1.0625 in
1.625 in
0.25 in
U25-1.12-37B
0.25 in
1.0625 in
1.625 in
0.375 in
U25-1.18
0.25 in
0.188 in
1.688 in
0.25 in
U25-1.25-SQB
0.25 in
1.25 in
1.75 in
0.25 in
U25-1.37
0.25 in
1.375 in
1.875 in
0.25 in
U25-1.37-37B
0.25 in
1.375 in
1.875 in
0.375 in
U25-1.50-31B
0.25 in
1.5 in
2 in
0.3125 in
U25-1.50-SQB
0.25 in
1.5 in
2 in
0.25 in
U25-1.75
0.25 in
1.75 in
2.25 in
0.25 in
U25-1.75-37B
0.25 in
1.75 in
2.25 in
0.375 in
U25-1.87-37B
0.25 in
1.875 in
2.375 in
0.375 in
U25-2.00-31B
0.25 in
2 in
2.5 in
0.3125 in
U25-2.00-SQB
0.25 in
2 in
2.5 in
0.25 in
U25-2.12-37B
0.25 in
2.125 in
2.625 in
0.375 in
U25-2.25
0.25 in
2.25 in
2.75 in
0.25 in
U25-2.25-37B
0.25 in
2.25 in
2.75 in
0.375 in
U25-2.37-37B
0.25 in
2.375 in
2.875 in
0.375 in
U25-2.50-SQB
0.25 in
2.5 in
3 in
0.25 in
U25-2.62-37B
0.25 in
2.625 in
3.125 in
0.375 in
U25-2.75-37B
0.25 in
2.75 in
3.25 in
0.375 in
U25-2.75-SQB
0.25 in
2.75 in
3.25 in
0.25 in
U25-3.25-37B
0.25 in
3.25 in
3.75 in
0.375 in
U25-3.50
0.25 in
3.5 in
4 in
0.25 in
U25-3.50-SQB
0.25 in
3.5 in
4 in
0.25 in
U25-3.75-37B
0.25 in
3.75 in
4.25 in
0.375 in
U25-3.75-SQB
0.25 in
3.75 in
4.25 in
0.25 in
U25-4.00-37B
0.25 in
4 in
4.5 in
0.375 in
U25-4.00-50D
0.25 in
4 in
4.5 in
0.5 in
U25-4.00-56B
0.25 in
4 in
4.5 in
0.5625 in
U25-4.50-37B
0.25 in
4.5 in
5 in
0.375 in
U25-4.50-56B
0.25 in
4.5 in
5 in
0.5625 in
U25-4.50-62B
0.25 in
4.5 in
5 in
0.625 in
U25-5.00-37B
0.25 in
5 in
5.5 in
0.375 in
U25-5.50
0.25 in
5.5 in
6 in
0.25 in
U25-5.50-37B
0.25 in
5.5 in
6 in
0.375 in
U25-5.50-56B
0.25 in
5.5 in
6 in
0.5625 in
U31-1.00-50B
0.3125 in
1 in
1.625 in
0.5 in
U31-1.25
0.3125 in
1.25 in
1.875 in
0.3125 in
U31-1.25-37B
0.3125 in
1.25 in
1.875 in
0.375 in
U31-1.37-37B
0.3125 in
1.375 in
2 in
0.375 in
U31-1.37-SQB
0.3125 in
1.375 in
2 in
0.3125 in
U31-1.50
0.3125 in
1.5 in
2.125 in
0.3125 in
U31-1.75-37B
0.3125 in
1.75 in
2.375 in
0.375 in
U31-1.87
0.3125 in
1.875 in
2.5 in
0.3125 in
U31-2.00
0.3125 in
2 in
2.625 in
0.3125 in
U31-2.00-50B
0.3125 in
2 in
2.625 in
0.5 in
U31-2.25-50B
0.3125 in
2.25 in
2.875 in
0.5 in
U31-2.37
0.3125 in
2.375 in
3 in
0.3125 in
U31-2.50
0.3125 in
2.5 in
3.125 in
0.3125 in
U31-2.50-50B
0.3125 in
2.5 in
3.125 in
0.5 in
U31-2.75
0.3125 in
2.75 in
3.375 in
0.3125 in
U31-2.75-50B
0.3125 in
2.75 in
3.375 in
0.5 in
U31-2.87
0.3125 in
2.875 in
3.5 in
0.3125 in
U31-3.00-50B
0.3125 in
3 in
3.625 in
0.5 in
U31-3.37-50B
0.3125 in
3.375 in
4 in
0.5 in
U31-4.00
0.3125 in
4 in
4.625 in
0.3125 in
U31-4.00-56B
0.3125 in
4 in
4.625 in
0.5625 in
U31-4.37
0.3125 in
4.375 in
5 in
0.3125 in
U31-4.50
0.3125 in
4.5 in
5.125 in
0.3125 in
U37-1.25
0.375 in
1.25 in
2 in
0.375 in
U37-1.75
0.375 in
1.75 in
2.5 in
0.375 in
U37-2.50-50B
0.375 in
2.5 in
3.25 in
0.5 in
U37-2.75
0.375 in
2.75 in
3.5 in
0.375 in
U37-3.25-50B
0.375 in
3.25 in
4 in
0.5 in
U37-3.50
0.375 in
3.5 in
4.25 in
0.375 in
U37-3.75-50D
0.375 in
3.75 in
4.5 in
0.5 in
U37-4.00-62B
0.375 in
4 in
4.75 in
0.625 in
U37-4.25-50D
0.375 in
4.25 in
5 in
0.5 in
U37-4.25-62B
0.375 in
4.25 in
5 in
0.625 in
U37-4.25-SQB
0.375 in
4.25 in
5 in
0.375 in
U37-4.50-62B
0.375 in
4.5 in
5.25 in
0.625 in
U37-5.00-62B
0.375 in
5 in
5.75 in
0.625 in
U37-5.25
0.375 in
5.25 in
6 in
0.375 in
U37-5.25-50D
0.375 in
5.25 in
6 in
0.5 in
U37-6.25-50D
0.375 in
6.25 in
7 in
0.5 in
U50-2.00-SQB
0.5 in
2 in
3 in
0.5 in
U50-2.50
0.5 in
2.5 in
3.5 in
0.5 in
