Style 2700 Polyurethane Piston Seals

Materials	Glass/PTFE filled polyurethane seal. Rubber energizer.
Pressure Range	0 to 5,000 PSI.
Temperature Range	-40°F to 220°F.

Products

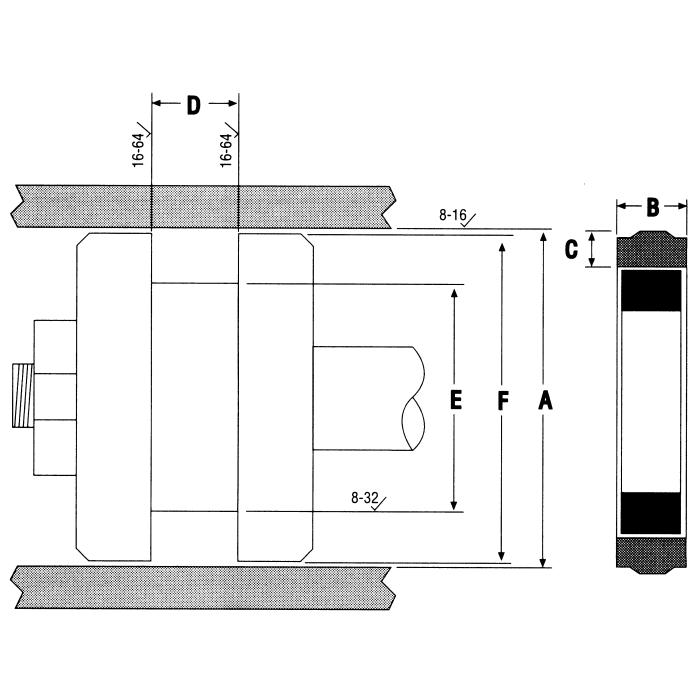

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)	Bore Tolerance (in)
PS2700-112	7	0.362	0.142	6.238	6.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
PS2700-32	2	0.116	0.067	1.69	1.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.009	±0.002
PS2700-56	3.5	0.269	0.087	2.94	3.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-64	4	0.269	0.087	3.44	3.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-72	4.5	0.269	0.087	3.94	4.499	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-80	5	0.269	0.087	4.44	4.999	±0.002	+0.005 / -0	+0.006 / -0	+0/-0.014	±0.002
PS2700-96	6	0.362	0.142	5.238	5.999	±0.002	+0.005 / -0	±0.005	+0/-0.014	±0.002
