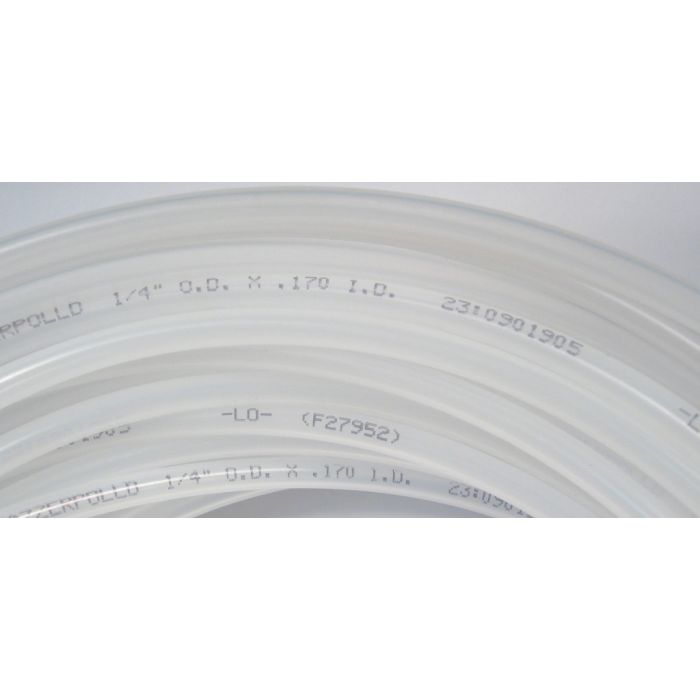

Polyethylene Tubing, Up To 300 PSI

Application	General low pressure & low temperature applications, instrumentation, food processing. Please review important safety & application information starting on
Features	LLDPE’s greatest advantage over low density polyethylene is its superior environmental stress crack resistance (ESCR). Environmental stresses that can shorten the service life of tubing include: chemical exposure, aging, connection to barb-type fittings, or high vibration connections with compression fittings. All colors comply with FDA regulation 21 CFR 177.1520© for food contact applications. Freelin-Wade has chosen to standardize on linear low density polyethylene and no longer offers low density polyethylene.
Hardness	50 Shore D
Pressure Rating	3:1 Safety Factor
Resin Compliance	FDA, NSF51
Temperature Range	-40°F to 150°F.
Tolerance	+/- 0.004''
Vacuum Rating	To 28''Hg

Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-048-01	0.25 in	0.04	0.17 in	1.25	Black	200	800	100
1J-048-10	0.25 in	0.04	0.17 in	1.25	Natural	200	800	100
1J-074-10	0.375 in	0.062	0.25 in	2	Natural	190	760	100
1J-077-10	0.313 in	0.062	0.187 in	1.5	Natural	230	920	100
1J-109-10	0.125 in	0.031	0.062 in	0.5	Natural	305	1220	100
A43184	0.188 in	0.031	0.125 in	1	Natural	200	800	100
