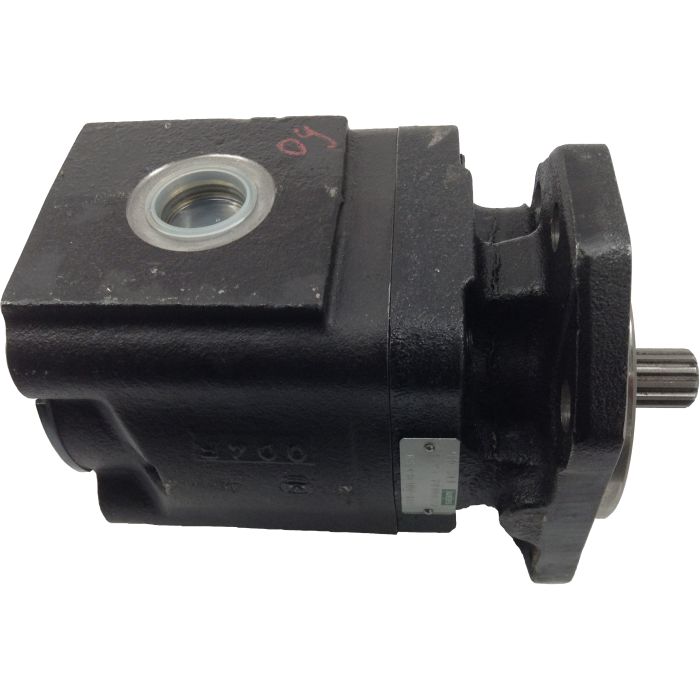

PG331 Series Cast Iron Gear Pump, 1.74 cu in/rev, 2/4-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE -16 Side Inlet SAE -12 Side Outlet, CW Rotation

Displacement 1.74	Displacement 1.74	Brand Salami S.P.A	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Mount 2/4-Bolt SAE B	Mount 2/4-Bolt SAE B	Ports SAE -16 Side Inlet SAE -12 Side Outlet	Ports SAE -16 Side Inlet SAE -12 Side Outlet	Pressure Rating 4000	Rated Flow 13.40	Rated Flow 13.4	Rotation CW	Shaft 13T Splined x 1.61 long SAE B	Shaft 13T Splined x 1.61 long SAE B	Speed Rating 2700 RPM	Speed Rating 2700 RPM	Supplier Part Number 615200022	Alternate Part Numbers Alternate Part Number C1MW22	Product Weight 29.80 lbs

Product Questions & Answers 2

Product Questions & Answers

Can this pump handle thick fluids, or am I gonna run into trouble?

Question by: Janet W on Mar 2, 2026, 5:04 PM

Normal operation is best with fluids in the 85 SUS to 297 SUS range. You might see issues outside that.

Answer by: Customer Support on Mar 4, 2026, 4:21 PM

pump says CW rotation on it -- can that be switched if my setup needs to run the other direction?

Question by: Daryl R on Nov 12, 2025, 4:47 PM

Rotation on these Salami gear pumps can be changed. You reverse the positions of the drive shaft and driven shaft and rotate the front flange, and that flips the direction. Just keep in mind the pump ships standard in clockwise rotation, so any change would need to be done before installation.

Answer by: Customer Support on Nov 14, 2025, 4:29 PM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Pressure Rating	Speed Rating
615200022	1.74	13.4	2/4-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE -16 Side Inlet SAE -12 Side Outlet	CW	4000	2700 RPM
615200032	2.1	16.1	2/4-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE -16 Side Inlet SAE -12 Side Outlet	CW	4000	2700 RPM
615200072	3.92	30.1	2/4-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE -20 Side Inlet SAE -16 Side Outlet	CW	2900	2250 RPM
