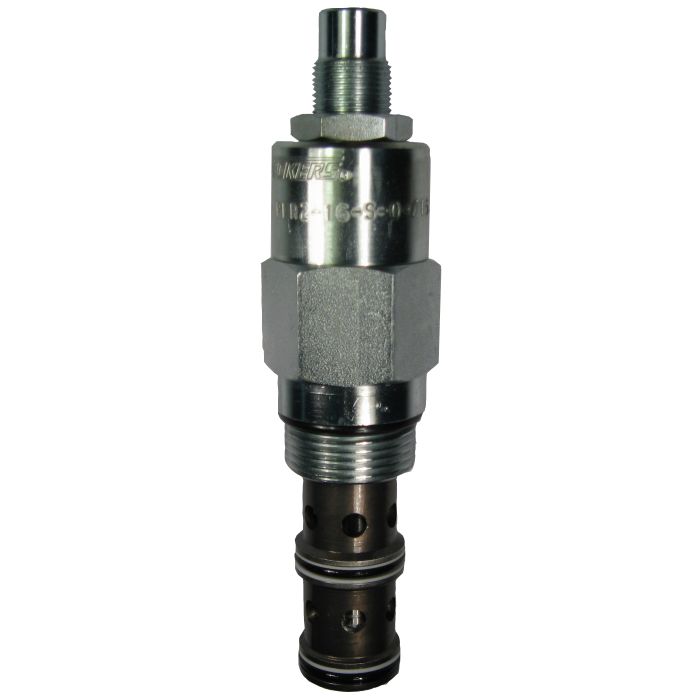

PFR2-16 Series 3-Port Pressure Compensated Priority Flow Controls, Up To 30 GPM & 3000 PSI

Application	This valve maintains a constant priority flow from port 1 to port 3 based on the setting adjustment, regardless of pressure changes downstream on port 3. Flow in excess of the priority setting is directed to port 2. If the priority flow at port 3 is blocked, the spool will shift to satisfy the priority flow requirement, thereby closing off flow to port 2.
Cartridge	Model PFR2-16*, sold separately.
Features	Cartridge style (Requires a machined cavity or housing for installation). The flow adjustment range is from the factory set maximum flow rate down to 50% of that rate. Pressure compensated for accurate flow control regardless of changes in input or load pressure.
Housing	Cavity size C-16-3, sold separately, see
Maximum Flow Rate	40 GPM (Inlet), 30 GPM (Priority)
Maximum Operating Pressure	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Part Number	Model Number	Adjustable Range	Adjustment Style	Seal Material	Price	Buy Now
02-165648	PFR2-16-S-0-/15.00	7.5 - 15.0	Screw with Locknut	Buna-N
