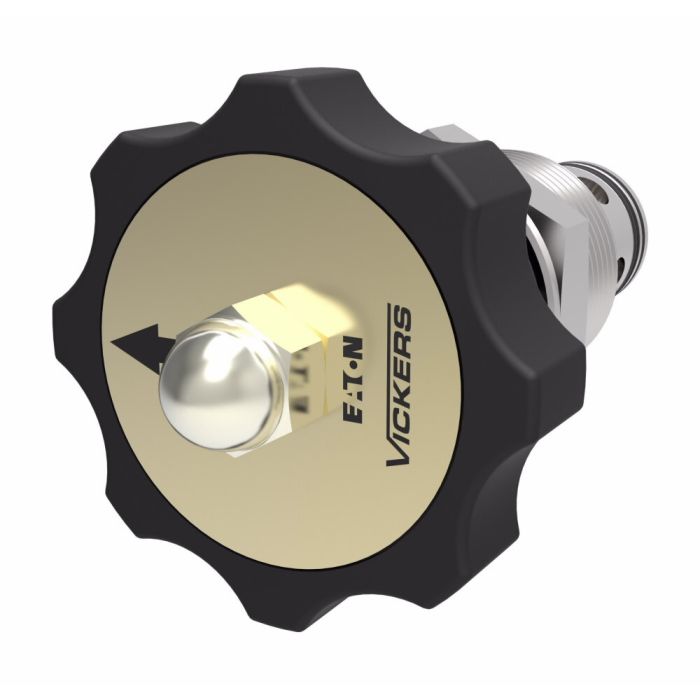

PFR2-16 Series 3-Port Pressure Compensated Priority Flow Control, 7.5 - 15.0 GPM Screw with Locknut Adjustment

Adjustable Range 7.5 - 15.0	Adjustment No	Adjustment Style Screw with Locknut	Application Harvesters, refuse haulers, mobile and industrial applications	Check Valve No	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Factory Set Flow Rate 15	Features 350 bar (5000 psi) & 350 L/min (92 USgpm)\|Perfect balance of pressure and flow\|Reliable, economical and compact	Installation Type Screw-in Cartridge	Leakage Standard	Maximum Flow Rate 114	Minimum Flow Rate 1.90	Number of Housing Ports 3	Number of Valve Ports 3	Port Type Cartrige Only	Recommended Filtration Level 18/16/13	Seal Material Buna-N	Seal Type Buna-N	Special Features None	Style Adjustable Pressure Compensated, Flow Regulator	Supplier Part Number 02-165648	Alternate Part Numbers Alternate Part Number C1MF99, Alternate Part Number PFR216S01500	Product Weight 1.65 lbs

Product Questions & Answers 1

Product Questions & Answers

got a 3-port setup already, how’s this one split the flow between the other two ports?

Question by: Rick R on Aug 1, 2025, 12:42 PM

With a priority valve like this, you set the flow you want to keep going from port 1 to port 3, and it holds that priority flow steady even if pressure changes downstream on port 3. Any flow above your priority setting gets sent over to port 2.

Answer by: Customer Support on Aug 2, 2025, 1:39 PM

Similar Products

Part Number	Model Number	Adjustable Range	Adjustment Style	Seal Material	Price	Buy Now
02-165648	PFR2-16-S-0-/15.00	7.5 - 15.0	Screw with Locknut	Buna-N
