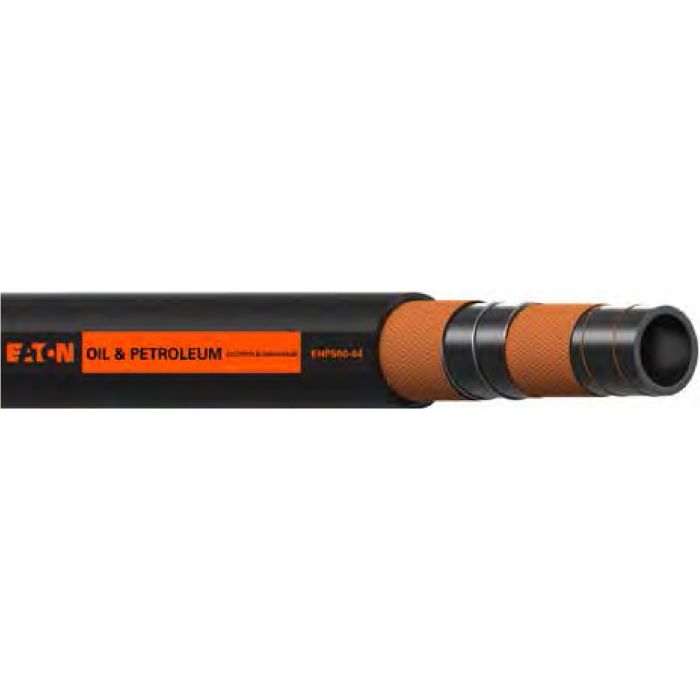

Petroleum/Oil Suction & Discharge Hose
Application |
For suction and discharge of petroleum products. Please review application requirements and limitations found in |
CAUTION |
For use with petroleum products with aromatic content up to 50% |
Construction |
NBR blend tube; High-tensile synthetic textile with a single steel helical wire and anti-static copper wire reinforcement; NBR blend cover. |
Fittings |
Cam and Groove. Combination Nipples |
Fittings & Fitting Attachment Suggestions |
• Cam and groove • Combination nipple |
Temperature Range |
-13°F to +158°F |
Products
| Model Number | Color | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|
| PETRO-S&D-32 | Black | 2 | 2.48 | 150 | 9.84 | 28 | 200 |
|
||
| PETRO-S&D-48 | Black | 3 | 3.5 | 150 | 14.96 | 28 | 200 |
|
||
| PETRO-S&D-64 | Black | 4 | 4.61 | 150 | 450 | 20.08 | 28 | 200 |
|
|
| PETRO-S&D-16 | Black | 1 | 1.44 | 150 | 4.33 | 28 | 200 |
|
||
| PETRO-S&D-20 | Black | 1.25 | 1.69 | 150 | 5.51 | 28 | 200 |
|
||
| PETRO-S&D-24 | Black | 1.5 | 1.93 | 150 | 6.69 | 28 | 200 |
|
||
| PETRO-S&D-40 | Black | 2.5 | 3.03 | 150 | 12.2 | 28 | 200 |
|
||
| PETRO-S&D-96 | Black | 6 | 6.69 | 150 | 31.1 | 28 | 200 |
|
