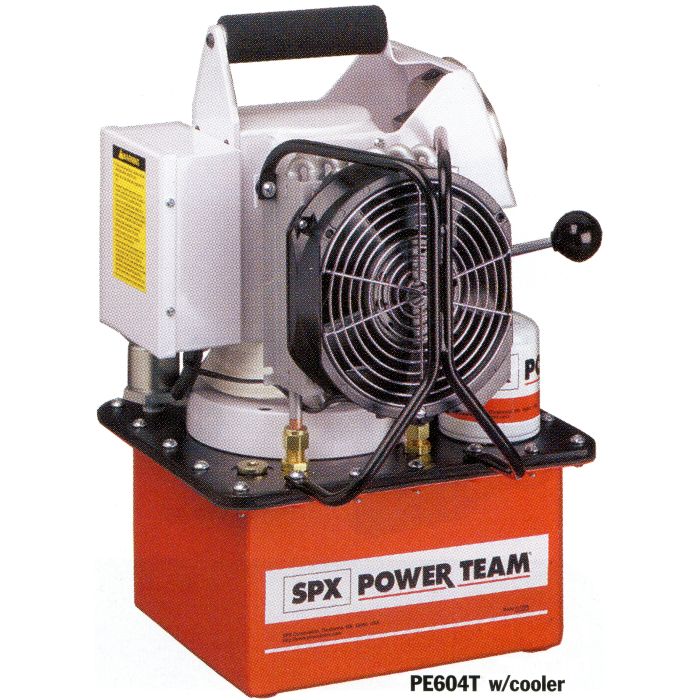

PE60 Series Single-Phase 2-Speed Pumps

Current Draw @ 10,000 PSI	25 amps @ 115VAC.
Group Description	Compact, light weight pump. Excellent choice for rugged applications and low voltage starting.
Features	Long, trouble free life in the most demanding work environments. For operating single- or double-acting cylinders, or stressing jacks • Powered by 11?8 hp, 115 volt, 60/50 Hz single phase motor. Starts under load, even at the reduced voltages at construction sites • Optional fan-driven external oil cooler includes rollover guard • Insulated carrying handle • Integral 4'' dia. fluid-filled pressure gauge with steel bezel complies with ASME B40.1 Grade A. With 0 to 10,000 psi pressure range in 100 psi increments • Sealed 3?4 gallon (usable) reservoir. Reservoir drain port is standard. • Standard oil level sight gauge for accurate oil level monitoring • External spin-on filter removes contaminants from circulating oil to maximize pump, valve and cylinder/tool life • Standard type hydraulic fluid is included.
Flow Rating	704in³/min @ 0 PSI, 440in³/min @ 700 PSI, 74in³/min @ 5,000 PSI, 56in³/min @ 10,000 PSI.
Maximum Pressure Output	10,000 PSI.
Reservoir Usable Capacity	157 in³.
Sound Level	80/85.

Products

Model Number	For Use With	Product Description	Valve Type	Function	Control	Motor	Dimensions	Price	Buy Now
PE604PT	Restricted, see next column	SPX PUMP E 56 CU IN/MIN 115VAC 50/60HZ		Pump on, manually shift valve to pull, to hold (pump off), to release (pump on)	On / Off / Pulse		11.50L x 9.31W x 18.25H
PE604PT-220	Restricted, see next column	SPX SINGLE-PHASE 2-SPEED PUMP PE60 SERIE		Pump on, manually shift valve to pull, to hold (pump off), to release (pump on)	On / Off / Pulse		11.50L x 9.31W x 18.25H
