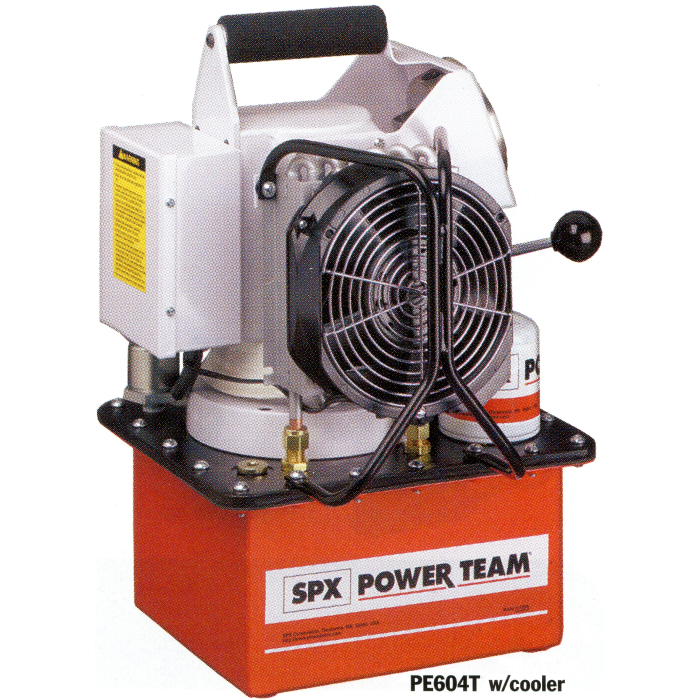

PE60 Series Single-Phase 2-Speed Pump, Motor, On / Off / Pulse Control, Valve, Pump on, manually shift valve to pull, to hold (pump off), to release (pump on)

Control
On / Off / Pulse
Dimensions
11.50L x 9.31W x 18.25H
Brand
HYDRAULIC TECH USA LLC(SPX)
Brand
Hydraulic Tech USA
Pack Size
1.00
UOM
EA
For Use With
Restricted, see next column
Function
Pump on, manually shift valve to pull, to hold (pump off), to release (pump on)
Alternate Part Numbers
Alternate Part Number C1JQ37
Supplier Part Number
PE604PT
Product Weight
51.00 lbs

Product Questions & Answers

Running this on a job site where the power ain't always steady, does the motor hold up when voltage drops off?
Question by: Jean W on Apr 6, 2025, 3:35 PM
Low-voltage starting is actually one of the stronger points of this pump. The 1-1/8 hp, 115-volt single-phase motor is built to start under load even when voltage is reduced, which is pretty common at active construction sites. So if you're pulling from a long extension cord or a generator that's carrying other equipment, the motor is rated to handle that kind of situation without failing to start.
Answer by: Customer Support on Apr 8, 2025, 6:41 AM
got a 115v outlet and not much else on the job, will this pump still start up ok when it’s under load?
Question by: Wes M on Oct 8, 2025, 1:34 PM
Built for low voltage starting, the 11/8 hp single phase motor is meant to start under load even when the supply voltage is a little reduced like you see on a lot of construction power. It runs on 115VAC at 60/50 Hz, and the current draw at 10,000 psi is listed at 25 amps.
Answer by: Customer Support on Oct 10, 2025, 6:45 AM
What's the deal with the valve on this thing? It says "manually shift valve to pull, to hold (pump off), to release (pump on)." I just want to make sure I'm understanding that right.
Question by: Chad G on Feb 14, 2026, 9:15 PM
That description refers to how you'd use this pump in a typical setup. The pump runs to build pressure for pulling, then you can manually shift the valve to hold that pressure (and turn the pump off to save energy), and finally shift again to release the pressure, with the pump running again during the release.
Answer by: Customer Support on Feb 16, 2026, 7:23 AM

Similar Products

Model Number For Use With Product Description Valve Type Function Control Motor Dimensions Price Buy Now
PE604PT Restricted, see next column SPX PUMP E 56 CU IN/MIN 115VAC 50/60HZ Pump on, manually shift valve to pull, to hold (pump off), to release (pump on) On / Off / Pulse 11.50L x 9.31W x 18.25H
PE604PT-220 Restricted, see next column SPX SINGLE-PHASE 2-SPEED PUMP PE60 SERIE Pump on, manually shift valve to pull, to hold (pump off), to release (pump on) On / Off / Pulse 11.50L x 9.31W x 18.25H
