PE55 Series Single-Phase 2-Speed Pumps

Current Draw @ 10,000 PSI	25 amps @ 115VAC, 15 amps @ 230VAC 50/60 Hz.
Group Description	Heavy duty multiple-applications pump. Heavy construction and concrete stressing. Low voltage starting possible.
Features	1-1/8 hp, 12,000 rpm, 110/115 volt, 50/60 Hz universal motor; draws 25 amps at full load, starts at reduced voltage • CSA rated for intermittent duty • 10 foot remote motor control (except PE552S which has a 25 foot remote motor and valve control) • True unloading valve achieves greater pump efficiency, allowing higher flows at maximum pressure • Reservoirs available in sizes up to 10 gallons • Light weight and portable. Best weight to performance ratio of all Power Team pumps • Standard type hydraulic fluid is included.
Flow Rating	704in³/min @ 0 PSI, 440in³/min @ 700 PSI, 74in³/min @ 5,000 PSI, 56in³/min @ 10,000 PSI.
Maximum Pressure Output	10,000 PSI.
Reservoir Usable Capacity	525 in³.
Sound Level	90/89.

Products

Model Number	For Use With	Product Description	Function	Control	Dimensions
PE552-50-220	Single Acting Cylinders	SPX PUMP E 3W 220V 60/50HZ R CNTRL 2.5	Pump on to extend, off to hold, off & manually shift valve to return	Remote On-Off Motor Control (220VAC), 10 ft	14.00L x 9.50W x 18.25H
PE554	Double Acting Cylinders	SPX ELECTRIC HYD PUMP	Pump on, manually shift valve to extend or retract, manually shift valve to hold	Remote On-Off Motor Control (115VAC), 10 ft	14.00L x 9.50W x 18.25H
PE554-50-220	Double Acting Cylinders	SPX ELECTRIC HYD PUMP	Pump on, manually shift valve to extend or retract, manually shift valve to hold	Remote On-Off Motor Control (220VAC), 10 ft	14.00L x 9.50W x 18.25H

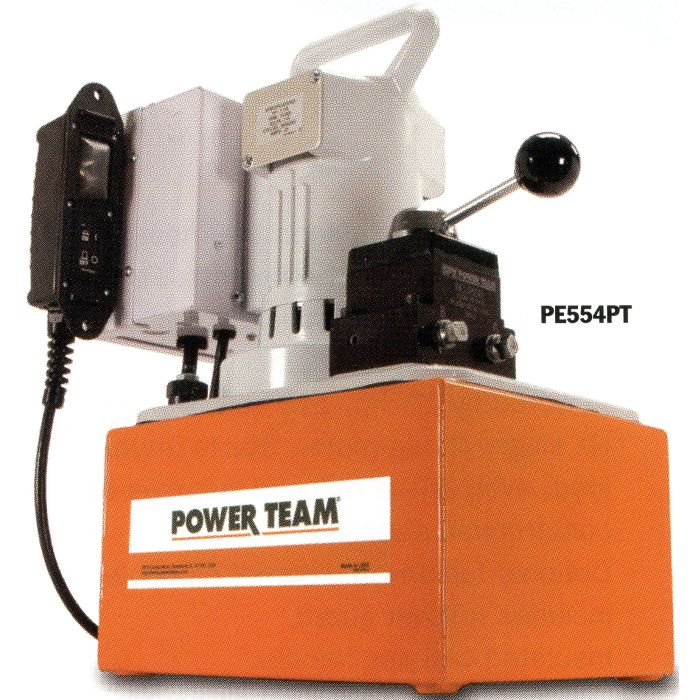

PE554PT	Restricted, see next column	SPX SINGLE-PHASE 2-SPEED PUMP PE55 SERIE	Pump on, manually shift valve to pull, to hold (pump off), to release (pump on)	Remote On-Off Motor Control (115VAC), 10 ft	14.00L x 9.50W x 18.25H
PE554S-50-220	Double Acting Cylinders	SPX PUMP E 3/4W SLNOID 220V 60/50HZ D	Pump on, energize valve to extend or retract, pump off to hold	Remote Motor & Valve Control (220VAC), 10 ft	14.00L x 9.50W x 18.25H
