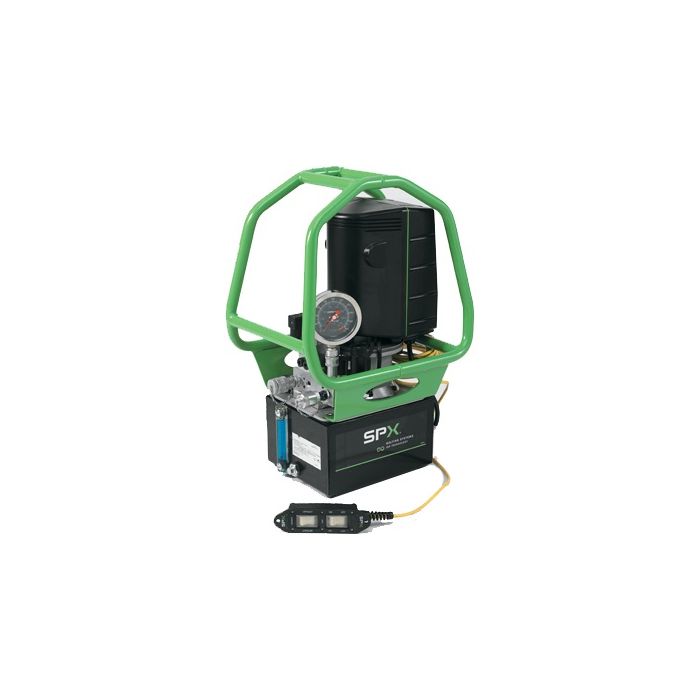

PE45 Series Single-Phase Infinite Stage Pumps

Group Description	an Infinite Stage Pump which increases productivity on the job by providing continuous pressure for up to 2x the speed of typical 2-stage pumps. Jobs get done faster and easier.
Designed with Safety in Mind	• Easily adjusted pressure regulator (relief) valve • Fixed 1500 psi / 103 Bar pressure retract relief valve
Enhanced Usability	Portable: 71 lbs. (without oil) • Up to four tools on one pump • Removable control pendant (15 ft / 5 m cord length) • Improved oil filtration • Universal Motor for reduced voltage applications (up to -20% nominal voltage) • 4-way valve (not for lifting applications)
Flow Rating	575 cu-in/min - 48 cu-in/min
Performance and Operation	• Over 100,000 cycles • Continuous duty up to 50?C / 122?F ambient (optional) • Proven design: proven reliability
Pressure	0 – 10,000 psi
Sound Level	87 – 92 dB
Temperature Range	Temperature: -13°F to 122°F (If temperatures are at extremes of the operating range, it is recommended to use hydraulic oils that are rated for those temperatures. Refer to service manuals and cooling options)

Products

Model Number	For Use With	Product Description	Valve Type	Motor	Oil Capacity	Dimensions	Price	Buy Now
PE45PEE4MPRS	Single & Double Acting Cylinders	SPX INFINITE STAGE PUMP 220 230VAC 50/16				17.7"L x 14.0"W x 26.6"H
