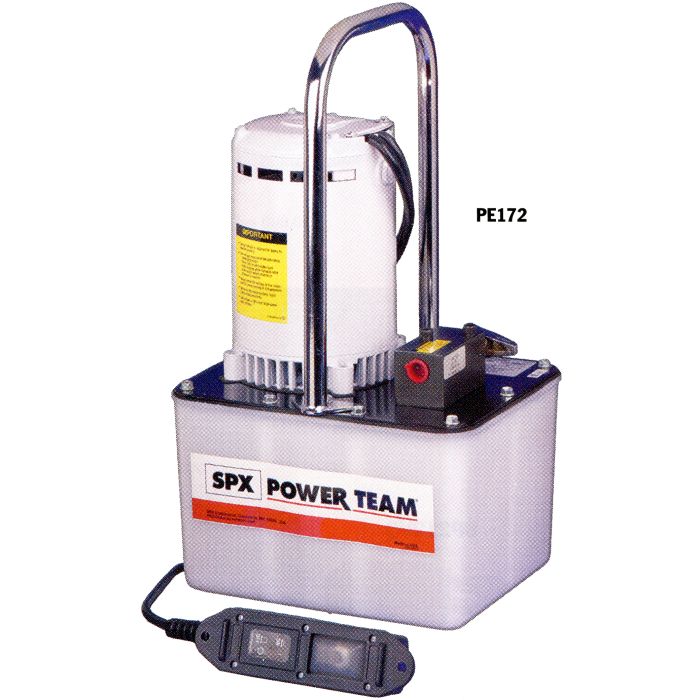

PE17 Series Single-Phase 2-Speed Pumps

Current Draw @ 10,000 PSI	10 amps @ 115VAC.
Group Description	For maintenance and construction applications.
Features	For use with single-acting or double-acting cylinders at operating pressures to 10,000 psi • For intermittent duty; starts under full load • Equipped with 1?2 hp, 3,450 rpm, singlephase, thermal protected induction motor; 10 ft. remote control cord (PE172S has 25 ft. cord) • Low amperage draw; small generators and low amperage circuits can be used as power source • Extremely quiet noise level (67-81 dBA) • Standard type hydraulic fluid is included.
Flow Rating	290in³/min @ 0 PSI, 190in³/min @ 100 PSI, 20in³/min @ 5,000 PSI, 16in³/min @ 10,000 PSI.
Maximum Pressure Output	10,000 PSI.

Products

Model Number	For Use With	Product Description	Function	Control	Dimensions
PE172	Single Acting Cylinders	SPX PWR TEAM PWR UNIT	Pump on to extend, off to hold, off & manually shift valve to return	Remote On-Off Motor Control (115VAC), 10 ft	11.38L x 9.25W x 18.50H
PE172-50-220	Single Acting Cylinders	SPX PUMP WITH 2 GALLON THERMOPLASTIC RES	Pump on to extend, off to hold, off & manually shift valve to return	Remote On-Off Motor Control (24VDC), 10 ft	11.38L x 9.25W x 18.50H
PE174-50-220	Single & Double Acting Cylinders	SPX ELECTRIC PUMP 220V	Pump on, manually shift valve to extend or retract, manually shift valve to hold	Remote On-Off Motor Control (24VDC), 10 ft	11.38L x 9.25W x 18.50H
