P Series Two-Speed Single Acting Hand Pumps, Up To 69 cu in Reservoir

Group Description	Pump automatically shifts into the high pressure lift stage upon contact with the load.
Features	All metal construction won't burn through in welding environments • Two-speed reduces handle strokes so you work faster and easier • Formed metal handle provides less flex, and reduces operator fatigue • Convenient fill port allow pumps to be filled in a horizontal or vertical position • Relief valve inboard of check valve prevents loads from drifting down • Large valve knob gives added control for slowly metering loads down • Standard type hydraulic fluid is included.
P19L & P59L Models	More usable oil volume — use with larger or longer stroke cylinders • True unloading valve set for 850 PSI provides more efficiency and lower handle force • Link design reduces handle effort by 40% • Durable aluminum reservoir, manifold, and end cap • Ergonomic non-slip handle grip provides more comfort • Spring loaded handle lock incorporated into handle.

Products

Model Number	For Use With	Maximum Pressure (psi) LP/HP	Handle Effort	Dimensions
P19	Single Acting Cylinders	325 / 10,000	99	A=5.50 B=14.63 E=13.69 L=4.00

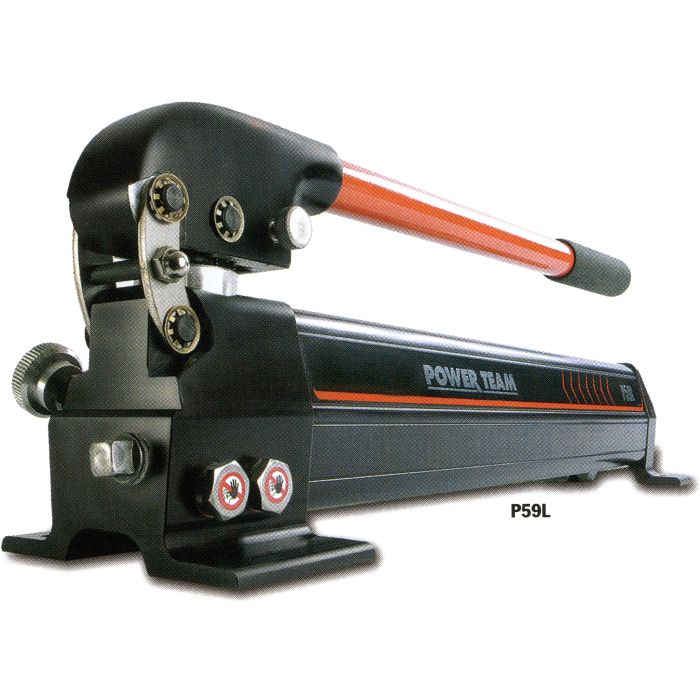

P19L	Single Acting Cylinders	850 / 10,000	78	A=5.50 E=13.69
P59	Single Acting Cylinders	325 / 10,000	145	A=7.00 B=21.00 E=23.00 L=4.75
P59L	Single Acting Cylinders	850 / 10,000	104	A=7.00 E=21.00
